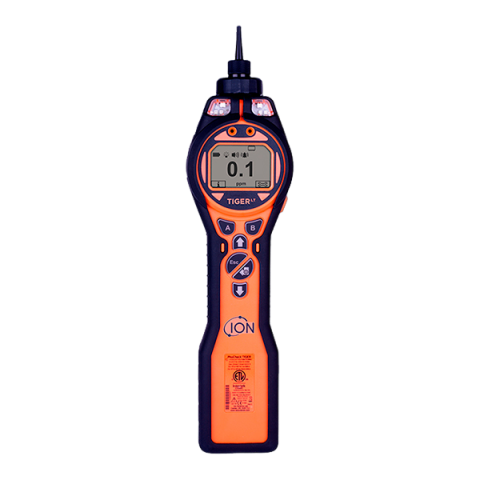

Ion Science TIGER LT Handheld detector (0.1 ppm; 5,000 ppm)

Minimum Resolution: 0.1 ppm

Maximum Reading: 5,000 ppm

Response Time: T90 < 2 seconds

Accuracy: ±5% of reading or ±1 digit

Linearity: ±5% of reading or ±1 digit

Battery Life: Li-ion battery, up to 24 hours continuous operation

Lamp: 10.6 eV Krypton PID lamp (standard)

Data Logging: Push-to-log, 128 zones, 80,000 data points

Calibration:

Standard calibration with 100 ppm isobutylene

Custom calibration capability

Alarm:

Flashing LED and 95 dBA audible alarm at 300 mm (12”)

Selectable vibrating alarm

Flow Rate: 220 ml/min under ambient conditions (with blocked flow alarm)

Operating Temperature: -20°C to +60°C (-4°F to 140°F)

Humidity: 0–99% RH (non-condensing)

Protection:

IP65 rated (heavy rain resistant)

EMC tested to EN61326-1:2006, EN50270:2006 & CFR 47:2008 Class A

Weight & Dimensions:

Instrument with probe dimensions: Width 91.4 x Height 370 x Depth 61 mm (3.59 x 14.56 x 2.4 in)

Instrument Weight: 0.75 kg
