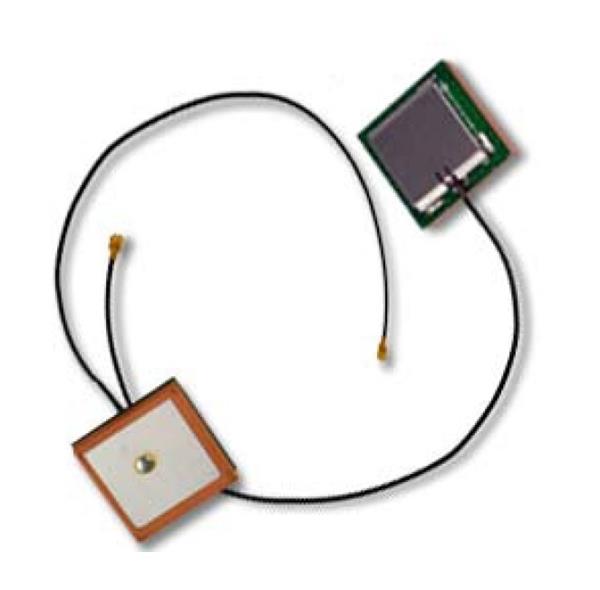

Inventek Systems ACTPAT154-01-IP Active GPS GPS ceramic active antenna 15.2 mm x 15.2 mm x 7.0 mm with U.FL connector.

Gain: 26 dB to 35 dB

VSWR: 1.5

Style: Ceramic

Width: 15.2 mm

Height: 7 mm

Length: 15.2 mm

Bandwidth: 5 MHz

Impedance: 50 Ohms

Cable Length: 63 mm

For Use With: ISM300F1, ISM300F2

Polarization: RHCP

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 1.57542 GHz

Mechanical Style: Patch

Maximum Frequency: 1.575 GHz

Termination Style: U.FL

Protocol - GPS, GLONASS: GPS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
