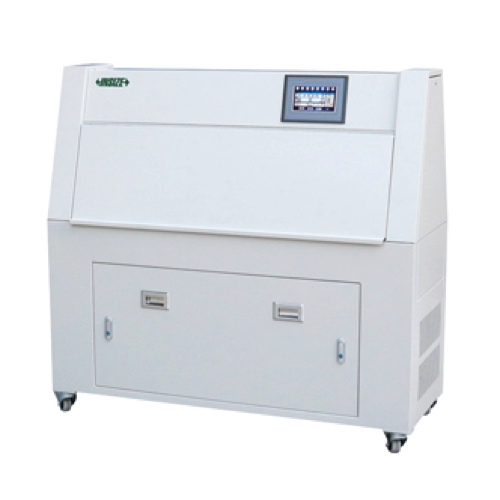

INSIZE UVT-A313 UV Aging Test Chambers (UVB (313nm), 40W * 8)

UV Lamp Type: UVB (313nm), 40W * 8

Lamp Lifetime: 6000 hours (for normal use)

Irradiance Range: 0.3W/m² ~ 1.55W/m²

Black Panel Temperature Range: RT+10°C ~ 80°C

Irradiance Deviation: ±10%

Black Panel Temperature Deviation: ±3°C

Irradiation Area: 5175cm²

Sample Holder Capacity: 24 pcs (capacity for 48 sample panels, 150×70mm)

Chamber Material: Stainless steel with powder coating

Test Modes: Irradiation, Condensation, Spray

Water Consumption: 7L/day (for condensation); 3L/min (for spray)

Power Supply: AC220V, 50Hz

Power Consumption: 2kW

External Dimensions (L×W×H): 1360×560×1290mm

Weight: 161kg
