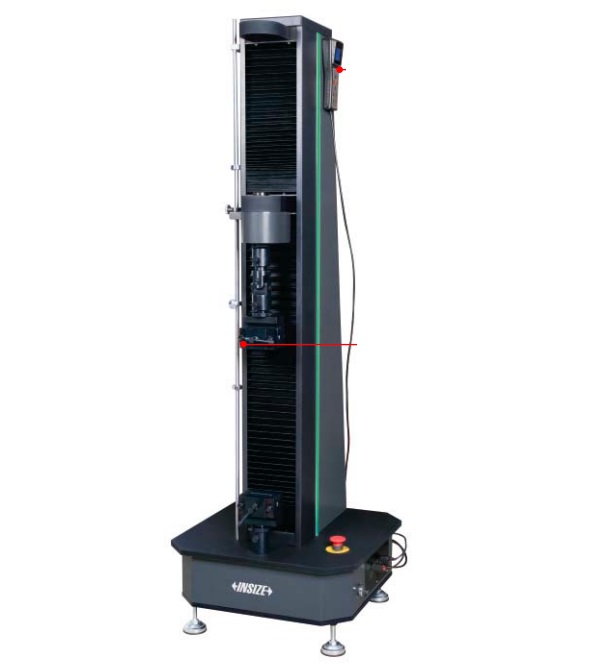

INSIZE UTM-S2KA Electronic Universal Testing Machine (2KN; 0.4%-100%FS)

Max. test force: 2KN

Accuracy class: 0.5 class

Test force measurement range: 0.4%-100%FS

Test force measurement accuracy: ±0.5% of indicating value

Resolution of test force measurement: 1/300000 of Max test force (same resolution all the way)

Deformation measurement range: 0.2%-100% FS

Deformation measurement accuracy: ±0.5% of indicating value

Deformation measurement resolution: 1/200000 of Max. deformation, up to 1/300000

Large deformation measurement range: 10-800mm

Large deformation measurement accuracy: ±1% of indicating value

Large deformation measurement resolution: 8μm

Displacement accuracy: ±0.5% of indicating value

Displacement resolution: 0.01mm

Force control speed adjustment range: 0.005-5%FS/s

Force control speed control accuracy: ±2% of the set value (speed<0.05%FS/s); ±0.5% of the set value (speed ≥0.05%FS/s)

Deformation speed adjustment range: 0.005-5%FS/s

Deformation speed control accuracy: ±2% of the set value (speed<0.05%FS/s) ±0.5% of the set value (speed ≥0.05%FS/s)

Beam displacement speed adjustment range: 0.001-500mm/min

Beam displacement speed control accuracy: ±1% of the set value (speed <0.5mm/min); ±0.2% of the set value (speed ≥0.5mm/min)

Crosshead travel: 900mm

Effective compression travel: 630mm

Power supply: 220V, 50Hz, 0,4kW-1kW

Dimension: 510x510x1580mm

Weight: 150kg

Standard delivery:

Main unit: 1pc

Control box: 1 pc

Computer: 1pc

Measuring software: 1

Printer: 1 pc

Tensile fixture: 1 set

Optional accessory: Extensometer
