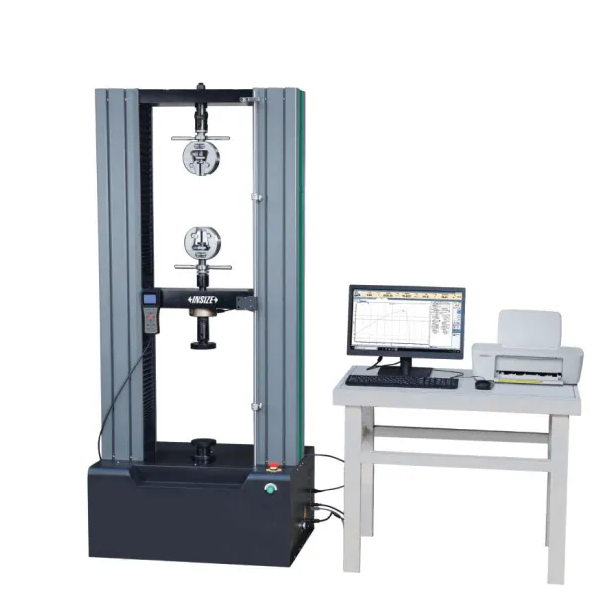

INSIZE UTM-E50 Electronic Universal Testing Machines (50kN)

Max. test force: 50kN

Accuracy class: 0.5 dass

Accuracy of test force: ±0.5% of indicated value

Range of test force: 0.2%~100%FS

Resolution of test force: 1/500000FS

Crossbeam displacement accuracy: ±0.5% of indicated value

Crossbeam displacement resolution: 0.025µm

Range of speed adjustment: 0.001~500mm/min

Accuracy of crossbeam speed:

±1% of the set value, (speed<0.5mm/min)

±0.2% of the set value, (speed≥0.5mm/min)

Range of force control speed: 0.005~5%FS/s

Accuracy of constant load force

±2% of the set value, (speed<0.05%FS/s)

±0.5% of the set value, (speed≥0.05%FS/s)

Compression fixture: Ø100mm

Wedge tension fixture

flat jaw: 0~7mm

V-jaw: Ø4~09mm

Effective test width: 440mm

Vertical test space: 970mm

Effective compression height: 700mm

Dimension (W x D x H):820×620×1880mm

Weight: 350kg

Power supply: AC 220V, 50Hz, 0.4kW~1kW
