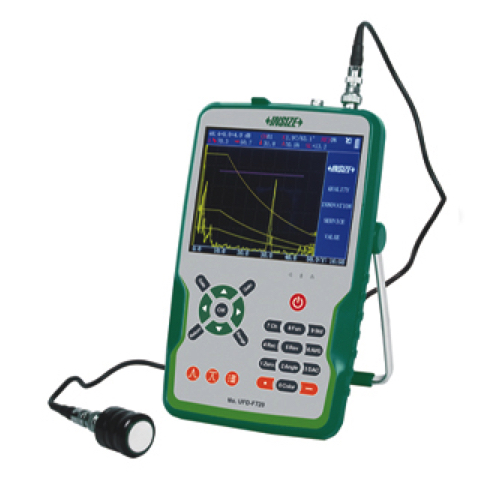

INSIZE UFD-F720 Digital Ultrasonic Flaw Detector (Standard Type) (0~15000mm)

Measuring range: 0~15000mm

Working frequency: 0.4~20MHz

Material velocity: 0~10000m/s

Dynamic range: ≥36dB

Gain range: 0~110dB (steps: 0.1dB, 1.0dB, 2.0dB, 6.0dB, 12dB)

Vertical linearity: ≤3.0%

Horizontal linearity: ≤0.1%

Resolving power: >36dB

Sensitivity leavings: >62dB (200∅2 flat bottom hole, narrow band)

Attenuator: 20dB±1dB

Suppression: 0~90%

Pulse energy: 400V

Noise: ≤10%

Pulse front: ≤10ns

Display screen: 5.7" TFT color LCD, resolution 640x480

Probe selection: straight probe, angle probe, penetrating probe, climbing probe

Gates: Incoming wave gate, lost wave gate, single gate reading, double gate reading

Alarms: Incoming wave alarm, lost wave alarm, double gate alarm, buzzer alarm, LED light alarm

Interface: Q9 (BNC), USB 2.0, VGA

Operating temperature: -20~50°C

Relative humidity: 20~95%

Power: rechargeable lithium-ion battery

Size (LxWxH): 228×140×42mm

Weight: 1.0kg
