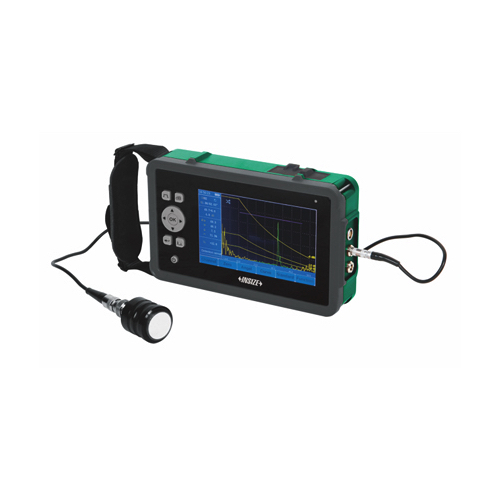

INSIZE UFD-C870 Digital Ultrasonic Flaw Detector (Excellent Type) (0 - 20000 mm)

Measuring Range: 0 - 20000 mm

Working Frequency: 0.4 - 20 MHz

Material Velocity: 20 - 20000 m/s

Pulse Repetition Frequency: 60 - 1000 Hz

Gain Range: 0 - 110 dB (Steps: 0.1, 1.0, 2.0, 6.0, 12 dB)

Dynamic Range: ≥32 dB

Vertical Linearity Error: ≤2.0%

Horizontal Linearity Error: ≤0.1%

Resolving Power: >36 dB

Sensitivity Margin: >62 dB (with Ø2 mm flat-bottom hole)

Rectification: Positive, Negative, Full-Wave, RF

Suppression (Reject): 0 - 90%

Noise Level: ≤10%

Pulse Voltage: 50V, 100V, 200V, 400V (Selectable)

Pulse Width: 50 ns - 1000 ns (Adjustable)

Damping: 50Ω / 500Ω (Selectable)

Display: 5.0" TFT Color LCD Touchscreen (800x480 pixels)

Gates: 2 independent gates (peak or flank measurement)

Alarms: Threshold positive/negative, DAC curve alarm (audible and visual)

Interfaces: BNC, USB-C, VGA

Power Supply: Rechargeable Li-ion Battery (>8 hours working time)

Dimensions (L×W×H): 180 × 110 × 45 mm

Weight: 0.68 kg
