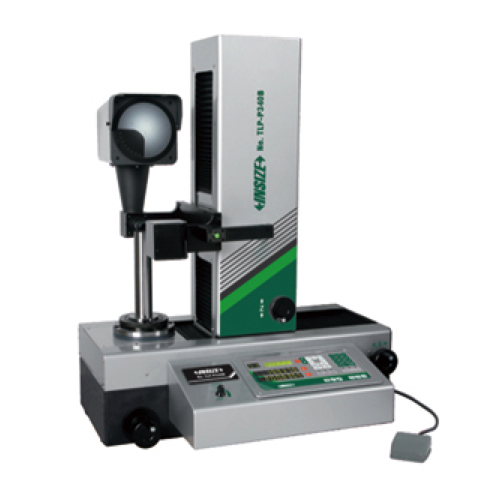

INSIZE TLP-P340B Tool Presetter (Projector Type) (Ø300mm, 45~450mm)
ManufacturerINSIZE(View more products from this manufacturer)
ModelTLP-P340B
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Maximum tool diameter (X axis): Ø300mm
Height measuring range (Z axis): 45~450mm
Accuracy:
X axis: ±6μm
Z axis: ±13μm
Resolution: 0.5µm
Diameter of projection screen: Ø120mm
Lens:
Magnification: 20X
View field: Ø6mm
Illumination: 3W LED
Spindle holder: BT50
Working air pressure: 0.6MPa
Power supply: 110/220V, 50/60Hz
Dimension (L×W×H): 690×620×922mm
Weight: 160kg
