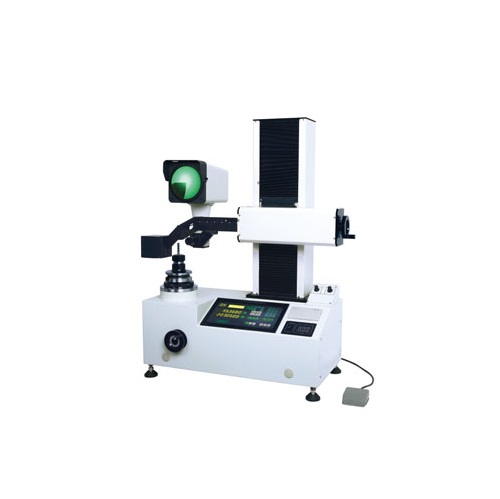

INSIZE TLP-P340 Tool Presetter
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specifications:
Maximum tool diameter (X axis): Ø300mm
Height measuring range (Z axis): 30~400mm
Accuracy
- X axis: ±6µm
- Z axis: ±13µm
Resolution: 0.5µm
Diameter of projection screen:Ø120mm
Lens
- Magnification: 20X
- View filed: Ø6mm
Illumination: 24V/20W
Spindle holder: BT50
Power supply: 220V, 50/60Hz
Dimension(LxWxH): 940x520x870mm
Weight: 90kg
Standard delivery:
Main unit: 1pc
BT50 spindle holder: 1pc
Standard rod: 1pc
Foot-switch: 1pc
Anti-dust cover: 1pc
Optional accessory:
BT50/BT30 coverter: TLP-P340-C1
BT50/BT40 coverter: TLP-P340-C2
