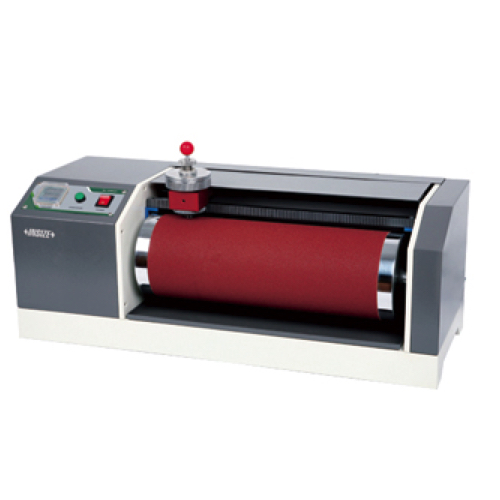

INSIZE QTM-A1 Din Abrasion Tester (40m, 0.32m/s, 5N, 10N)

Diameter of roller: Ø(150±0.2)mm

Length of roller: 460mm

Speed of roller: 40±1rpm

Abrasion stroke: 40m

Abrasion speed: 0.32m/sec

Angle of inclination: 3°

Diameter of specimen: Ø16mm

Thickness of specimen: 6~15mm

Test load: 5N, 10N

Displacement of fixture: 4.2mm/per revolution of roller

Dimension (W × D × H): 760×300×280mm

Weight: 61kg

Power supply: AC 220V, 50Hz

Datasheet

Standard Delivery

Main unit: 1 pc

Weight (2.5N): 1 pc

Weight (5N): 1 pc

Sample cutter: 1 pc

Standard rubber (Ø16×8mm): 3 pcs

Sandpaper: 2 pcs

Grinding block: 1 pc

Metal pad: 1 pc
