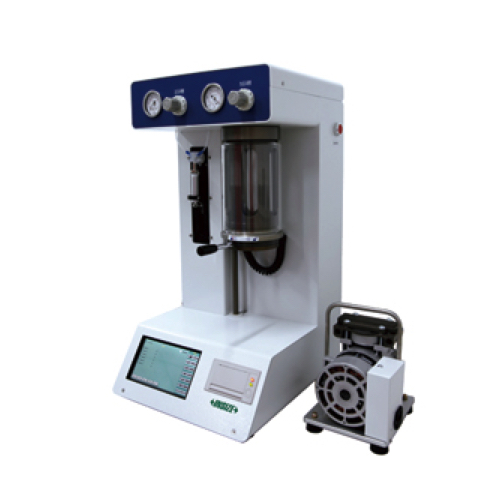

INSIZE PSC-TX100 Oil Particle Counter (Standard Type) (12000~40000 particles/ml)

Light source: Semiconductor laser

Resolution: ≤10% (GB/T18854, ISO11171)

Coincidence error limit: Repeatable 12000~40000 particle/ml

Sampling volume: 0.2~6000ml, interval 0.1ml

Sampling error: <0.5%

Sampling rate: 5~80ml/min

Sample temperature: -30~80°C

Working temperature: -20~60°C

Storage temperature: -30~80°C

Particle size range: 1~100µm (ACFTD standard) or 4~70µm(c) (ISO MTD standard)

Counting accuracy: <5%

Sensitivity: 0.8µm (ISO4402) or 3µm(c)

Sample viscosity: ≤650cSt

Test channel: 8~64 channels selectable (default 64 channels)

Pressure range: -0.08Mpa~0.8Mpa

Temperature sensor: Optional, measurement range: 1~100°C, accuracy: 1°C

Water activity sensor: Optional, measurement range: 0~1aw, accuracy: 0.03aw

Water content sensor: Optional, measurement range: 1~360ppm, accuracy: 1ppm

Interface type: RS232, RE485, and USB

Data store: 1000 sets of data can be stored, and support U disk storage

Weight: 23kg

Dimension (W×H×D): 340×410×650mm

Power supply: AC 110-240V, 50~60Hz, 70W

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

Pneumatic pump: 1 pc

Positive pressure tube: 1 pc

Liquid discharge tube: 1 set

Ultrasonic cleaner: 1 pc

Tool: 1 set
