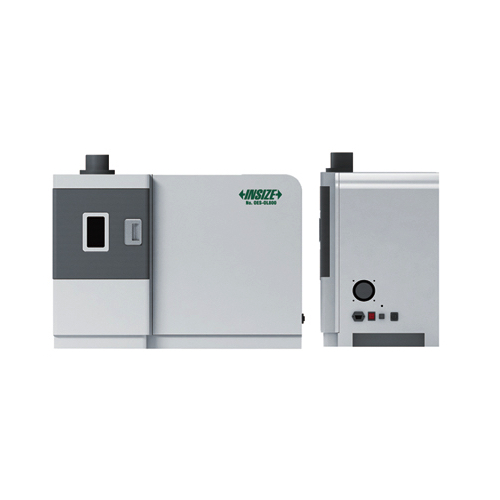

INSIZE OES-OL800 Oil Element Analysis Spectrometer (190~810nm)

Optical structure: Paschen-Runge structure

Radius of Rowland circle: 350mm

Wavelength range: 190~810nm

Detector: Multi-CCD inspection system

Pixel resolution: 12×3648 pixels

Raster scale: 2700 bars/mm

Intelligent light room: 38±0.5°C

Optical focal length: 500mm

Detecting element: Conventional 24 types

Working environment: 0~55°C, 20~80%RH

Power supply: AC220V, 50Hz

Dimension: 860×470×620mm

Weight: 95kg

Datasheet

STANDARD DELIVERY:

Main unit: 1 pc

Computer: 1 set

Software: 1 set

Electrode sharpener: 1 pc

Substrate lubricant: 1 set

Standard oil: 1 set

Oil box tray: 1 pc

Waste oil box: 1 set

Rod electrode (OES-OL800-RE): 1 set

Disc electrode (OES-OL800-DE): 2 sets

Oil cup (OES-OL800-CUP): 1 set

Pipette (OES-OL800-PIP): 1 set
