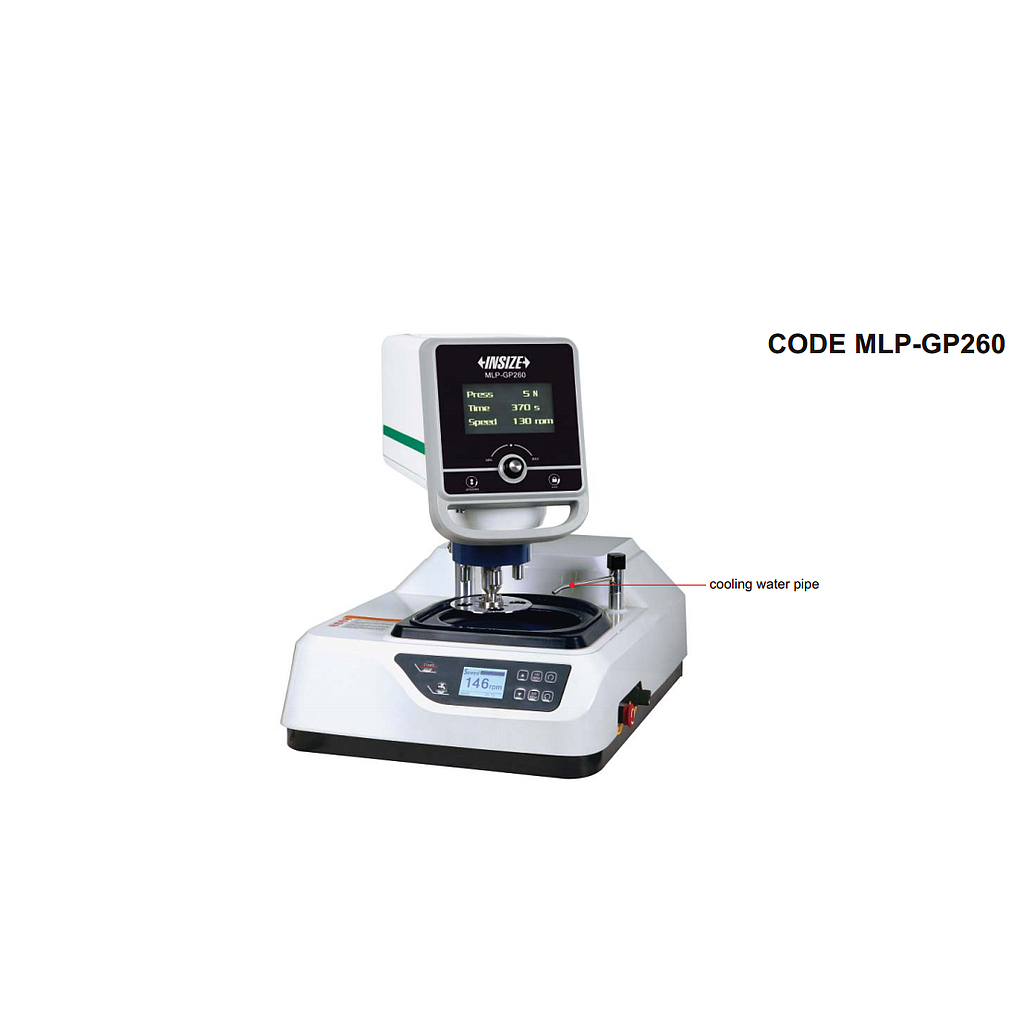

INSIZE MLP-GP260 Grinder and Polisher (50~150rrpm)

Features:

ABS case and stainless steel parts, anti-corrosion, easy to clean

Can hold up to 4 samples

Smooth rotation, low noise

Adjustable speed

Water cooling device and abrasive cleaning nozzle prevent samples from overheating and destroying structures

Platen rotation direction can be selected

Replaceable platen

Specifications:

Platen diameter: Ø250mm

Platen rotaton speed: 50~1000r/min(stepless adjustable), 150/300r/min(two fixed speeds)

Platen rotation direction: clockwise or couterclockwise

Grinding head speed: 50~150r/min (stepless adjustable)

Pressure range: 5~60N

Operating time: 5~995s

Sample diameter: Ø30mm

Air pressure: 0.6~0.8MPa

Powe supply: AC 220V, 50Hz

Input power: 1.1kW

Dimension: 730x795x594mm

Weight: 90kg

Standard delivery: Main unit, silicon carbide paper ( 6 pcs: 200, 600, 1000), polishing cloth (4pcs)

Optional accessory: Silicon carbide paper (MLP-GP260-Sxx), polishing cloth (MLP-GP260-CLT), diamong polishing agent (MLP-GP260-Dxx)

Datasheet
