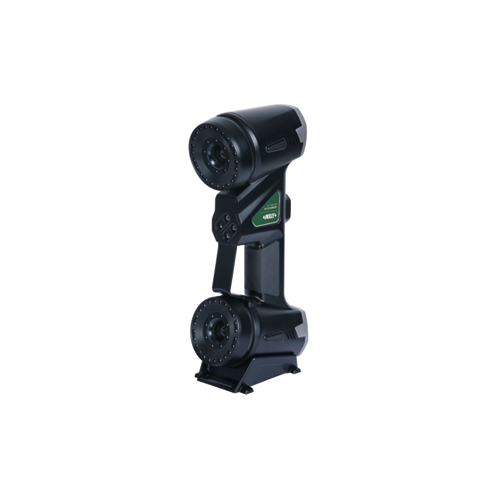

INSIZE LSM-L340 Handheld 3D Scanner (5,400,000 measurements/s)

Scanning mode

High-speed scanning: 26 cross blue laser lines

Precision scanning: 7 parallel blue laser lines

Deep hole scanning: 1 blue laser line

Maximum scanning speed: 5,400,000  measurements/s

Volume accuracy:

0.015 mm + 0.035 mm/m (standard configuration)

0.015 mm + 0.025 mm/m (with optional photogrammetric rulers)

Laser class: Class II (eye-safe)

Maximum resolution: 0.01 mm

Depth of field: 550 mm

Reference distance:

300 mm (high-speed scanning, deep hole scanning)

200 mm (precision scanning)

Maximum scanning field: 650 mm × 550 mm

Output format: stl, ply, txt, asc

Operating temperature: −10 °C to 40 °C

Interface: USB 3.0

Power supply: 100–240 V, 50/60 Hz

Dimension (L × W × H): 335 × 140 × 70 mm

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

Scanning software: 1 pc

R1.5mm mark: 1000 pcs

R3.0mm mark: 4000 pcs

Calibration plate: 1 pc
