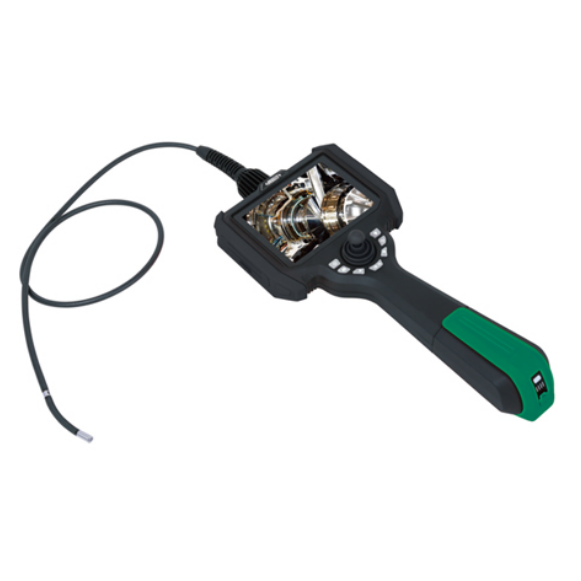

INSIZE ISV-K2810 Videoscope (2.8mm; 3~70mm; 4 directions; IP65)

Lens:

+ Diameter: 2.8mm

+ Pixel: 0.16M

+ Resolution: 400x400

+ Depth of field: 3~70mm

+ Bending direction: 4 directions

+ Bending range (α): ±160º

+ Angle of view (θ): 120º

+ Illumination: rear fiber

+ Lens: sapphire glass lens

+ Dust/ waterproof: IP65

+ Bend control: Manual joystick

Cable:

+ Length: 1m

+ Type: tungsten wire weaved cable

Main unit:

+ Display: 5” high definition LCD

+ Function: take pictures, take videos

+ File format: Picture: JPG, Video: MP4

+ Image process: Image zoom (1X, 2X, 3X, 4X)

+ Image control: freeze, flip over, playback and analog ruler

+ Memory: memory card

+ Output: USB, HDMI

+ Power supply: rechargeable lithium battery (working time: ≥4 hours; AC/DC adapter (for continuous working)

Weight: 1000g

Operation environment:

+ Main unit: -10~50ºC, no preheat

+ Operation temperature: -20~70ºC

+ Storage temperature: -20~60ºC

+ Relative humidity: maximum 90%, no condensation

Standard delivery:

+ 1x Main unit

+ 1x 32G SD card

+ 1x Card reader

+ 1x USB cable

+ 1x Tripod

+ 1x AC/DC Adapter

Optional accessories:

WIFI output: ISV-K-WIFI (must be installed in factory, only for android OS)

Temperature alarm: ISV-K-HTALARM (must be installed in factory, for ISV-K3915 and ISV-K6015)

Clamp: ISV-K-CLAMP1, ISV-K-CLAMP2, ISV-K-CLAMP3, ISV-K-CLAMP4 (must be installed in factory, for ISV-K3915 and ISV-K6015)
