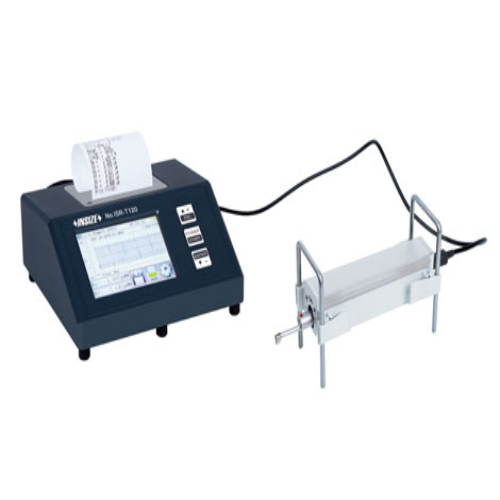

INSIZE ISR-T120 Roughness Tester (X: 17.5mm, Z: 640μm)

Parameters: Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, RC, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax

Range:

X axis: 17.5mm

Z axis: 640μm (-320μm~320μm)

Accuracy: ±10%

Resolution (Ra): 0.001μm

Probe

type: inductive

stylus radius/angle: 5µm/90°

stylus material: diamond

Measuring force: 4mN

Measuring unit: μm/pin

Cut off: 0.25/0.8/2.5mm

Number of cut-offs: 1-5

Traverse speed: 0.135mm/s, 0.5mm/s, 1mm/s

Memory: 100 measurement results

Output: bluetooth and USB

Power: built-in rechargeable battery

Dimension (LxWxH): 158×64×52mm

Weight: 400g
