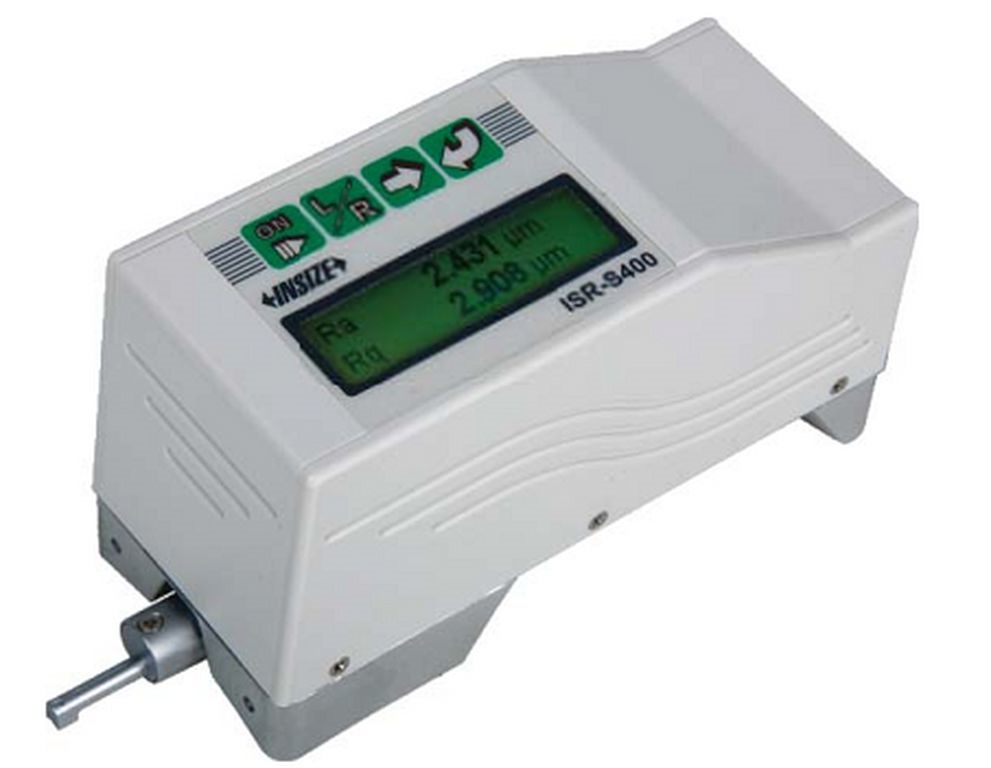

Insize ISR-S400 ROUGHNESS TESTER

- Parameters: Ra, Rq, Rt, Rz, Rc, Rmax, Rsm, Rpc, Rmr, R, AR, Rx

- Range: Ra: 0 - 100µm, Rt: 0.05 - 400µm

- Accuracy: ±3%

- Resolution(Ra): 0.001µm

- Probe :

+ Type: inductive

+ stylus radius/angle: 5µm/90°

+ stylus material: diamond

- Measuring force: 0.75mN

- Measuring unit: µm/µin

- Cut off: 0.25/0.8/2.5mm

- Number of cut-offs: 1 to 5

- Traverse speed: 1mm/s

- Memory: 100 measurement results

- Output: USB

- Power: built-in rechargeble battery

- Dimension(L×W×H): 122x52x68mm

- Weight: 650g

- STANDARD DELIVERY: Main unit, Standard probe, Calibration block, Adjustable stand, AC/DC adapter

Cataloge ISR-S400
