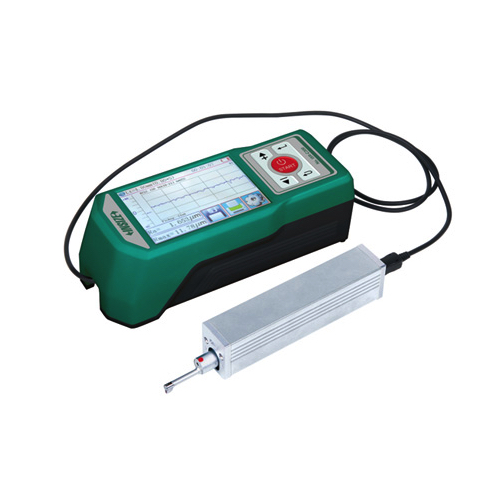

INSIZE ISR-C301 Roughness Tester (Separable Type) (17.5mm; 320µm (-160µm ~ 160µm))

Measuring force: 0.75mN

Stylus radius/angle: 2µm / 60°

Parameters: Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, Rc, Rz(JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax

Probe type: inductive

Stylus material: diamond

Range:

X axis: 17.5mm

Z axis: 320µm (-160µm ~ 160µm)

Accuracy: ±10%

Resolution (Ra): 0.001µm

Measuring unit: µm / μin

Cut off: 0.25 / 0.8 / 2.5mm

Number of cut-offs: 1 ~ 5

Moving speed: 0.135mm/s, 0.5mm/s, 1mm/s

Memory: 100 measurement results

Output: USB and Bluetooth

Power: built-in rechargeable battery

Dimension (L×W×H): 158×64×52mm

Weight: 400g

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

Standard probe:

Included in ISR-C301: 1 pc

Calibration block and support: 1 pc of each

Connecting cable (long and short): 1 pc of each

Magnetic stand adapter: 1 pc

Adjustable stand: 1 pc

Touch pen: 1 pc

Software and USB cable: 1 pc

AC/DC adapter: 1 pc
