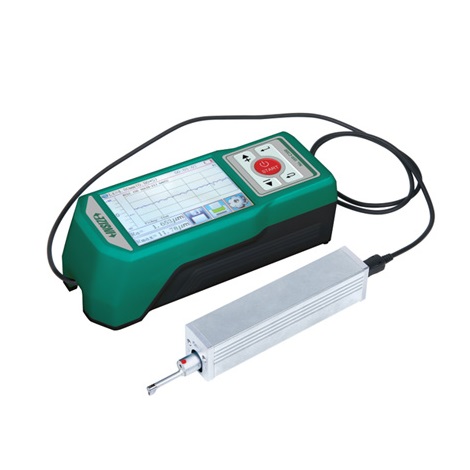

INSIZE ISR-C300 Roughness Tester (17.5mm, 320µm, separable type)

Parameters: Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y Rt, Rc, Rz(JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax

Range

X axis: 17.5mm

Z axis: 320µm (-160µm~160µm)

Accuracy: ±10%

Resolution: Ra: 0.001µm

Probe

type: inductive

stylus radius/angle: 5µm/90°

stylus material: diamond

Measureing force: 4mN

Measuring unit: µm/µin

Cut off: 0.25/0.8/2.5mm

Number of cut-off: 1~5

Traverse speed: 0.135mm/s, 0.5mm/s, 1mm/s

Memory: 100 measurements results

Output: USB and bluetooth

Power: built-in rechargeable battery

Dimensions: (LxWxH): 158x64x52mm

Weight: 400g

Standard delivery: Main unit 1pc, Standard probe 1pc, Calibration block and support 1 pc, Connecting cable (long and short) 1pc, Magnetic stand adapter 1pc, Adjustable stand 1pc, Touch pen 1pc, Software and USB cable, AC/DC adapter 1pc.

Optional accessory: Extension rod ISR-C002-ER, Small hole probe ISR-C002-PROBE, Tiny hole probe ISR-C002-SBP, Deep groove probe ISR-C002-DGP, Bluetooth printer ISR-C002-PRINTER, Height gage adapter ISR-C300-LB1, Bluetooth Receiver ISR-C300-RECEIVER, Support for flat surface ISR-C300-COVER1, Support for cylindrical surface ISR-C300-COVER2
