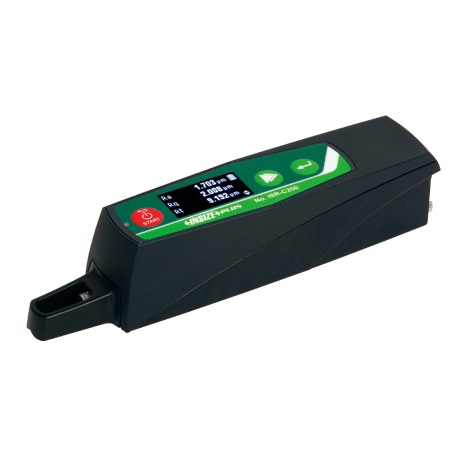

INSIZE ISR-C200 Roughness Tester (X:17,5mm, Z:250µm)

Parameters: Ra, Rq, Rt, Rz, Rc, Rmax, RSm, Rpc, Pt, R, AR, Rx, Ppc

Range

X axis: 17.5mm

Z axis: 250µm

Accuracy: ±(5%+0.025)µm

Resolution: Ra: 0.001µm

Probe

type: inductive

stylus radius/angle: 2µm/90°

stylus material: diamond

Measuring unit: µm/µin

Cut off: 0.25/0.8/2.5mm

Number of cut-off: 1~5

Traverse speed: 0.5mm/s, 1mm/s

Memory: 1800 measurements with only parameters, 30 measurements with graph

Power: built-in rechargeable battery

Dimensions: (LxWxH): 160x34x33.5mm

Weight: 200g

Standard delivery: Main unit 1pc, Standard probe 1pc, Calibration block 1 pc, Adjustable stand 1pc, Probe cover 1pc, Magnetic stand adapter 1pc, Software and USB cable 1pc, AC/DC adapter 1pc.

Optional accessory: Dial test indicator holder 6293-6, Groove probe ISR-C200-SB21, Small hole probe ISR-C200-SB31, Deep groove probe ISR-C200-SB121, Extension rod ISR-C200-ER50, Extension rod ISR-C200-ER100
