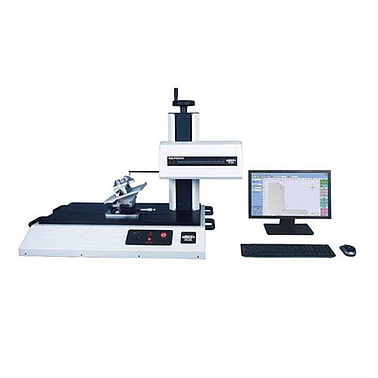

Insize ISQ-PGS200 Contour Measuring Machine

X axis

Measuring range: 200mm

Resolution: 0.5μm

Accuracy: +/-(1+L/80)μm, L(mm)

Z axis

Measuring range: 50mm

Resolution: 0.2μm

Accuracy: +/-(1+H/30)μm, H(mm)

Traverse speed: 0~10mm

Measuring speed: 0.2, 0.5, 1, 2mm/s

Radius of probe tip: 20μm

Measuring Unit: mm/inch

Traverse direction: backword

Measuring force: 30mN

Traceable angle: 75 degree (upward), 85 degree (downward)

Travel of Z axis: 300mm

Dimension(LxWxH): 110x570x720mm

Power supply: 110~240V/50~60Hz

Weigth: 42Kg

Included: main unit (1pc), standard probe (ISQ-PGS-T01) (1pc), software, USB cable(1pc)

Optional: calibration block, 4 axis stage, vise, probe
