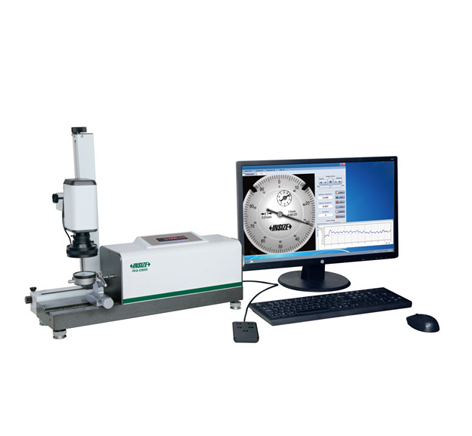

INSIZE ISQ-DB50 Automatic Dial Indicator Tester (0-50mm;0.1 μm)

Applicable products: dial indicators, digital indicators, dial test indicators and bore gages

Measuring range: 0-50mm

Resolution: 0.1 μm

Repeatability: 0.1 μm

Speed: average 0.6s/point (adjustable). 3 minutes to calibrate a 10mm dial indicator

Accuracy:

-any 1mm: 0.8 μm

-any 2mm: 1.0 μm

-any 10mm: 1.3 μm

-any 30 μm: 1.5 μm

-50mm: 2.0 μm

Hysteresis: 0.5 μm

Output: RS232

Power supply: 220V, 50Hz

Operation temperature: 20 ±5 °C

Operation humidity: (50~70)%RH

Dimension (LxWxH): 640x240x530mm

Weight: 35kg

Standard delivery:

-Holder for dial indicators and digital indicators (Φ8mm, 3/8”): 1pc

-Holder for dial test indicators (Φ4mm, Φ6mm, Φ8mm): 3pcs

-Holder for bore gages (Φ4-28mm): 1pc

-Computer: 1pc

-Remote controller: 1pc

-Software: 1pc

Optional accessory:

-Holder for split type bore gages: ISQ-DB501

-Cable for INSIZE digital indicators: ISQ-DB502
