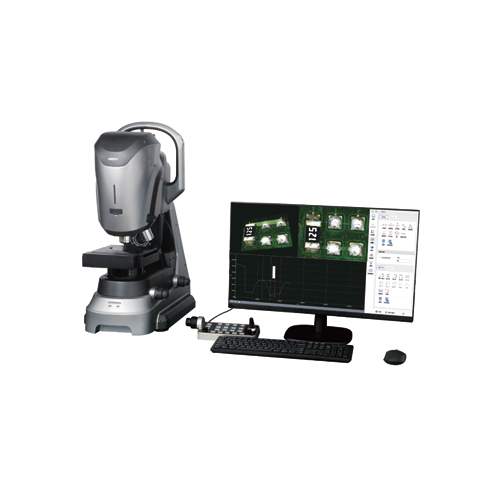

INSIZE ISM-H5000 Large Depth Of Field 3D Measuring Microscope (Advanced Type) (30X-6000X)

Magnification: 30X-6000X (Digital magnification available for 5000X and 6000X)

Objective: 1.5X, 5X, 20X, 50X

Horizontal Resolution: 0.42μm

Maximum Depth of Field: 30mm

Working Distance: 2-30mm

Max. Height of Workpieces: 90mm

View Field: 50.60×38.00μm to 9977.30×7483.00μm

Accuracy: ±(0.5+0.005L)μm (L is measuring length/height in mm)

Illumination: Bright field, dark field, hybrid lighting, projected lighting

Light Source: LED, lifespan about 40,000 hours

Maximum Viewable Pixel Size: 5 billion pixels (2D), 2.5 billion pixels (3D)

Tilting Angle Range: -89° to +89°

Sensor: 1/1.7" CMOS

Camera: 12.22MP (4168×3062)

Frame Rate: 30fps

Resolution: Quick: 2048×1536, Standard: 2880×2160, High: 4000×3000, High Def: 8000×6000/12000×9000

Display Size: 27" screen

Pixel Pitching: 0.1554×0.1554mm

Motorized Stage Size: 228mm×204mm, Moving Speed: 10mm/s, Resolution: 1µm

Power Supply: 220V

Dimensions (L×W×H): 600×320×710mm

Weight: 70kg

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

Computer: 1 pc

Glass calibration plate: 1 pc

Anti-dust cover: 1 pc

16G USB flash disk: 1 pc
