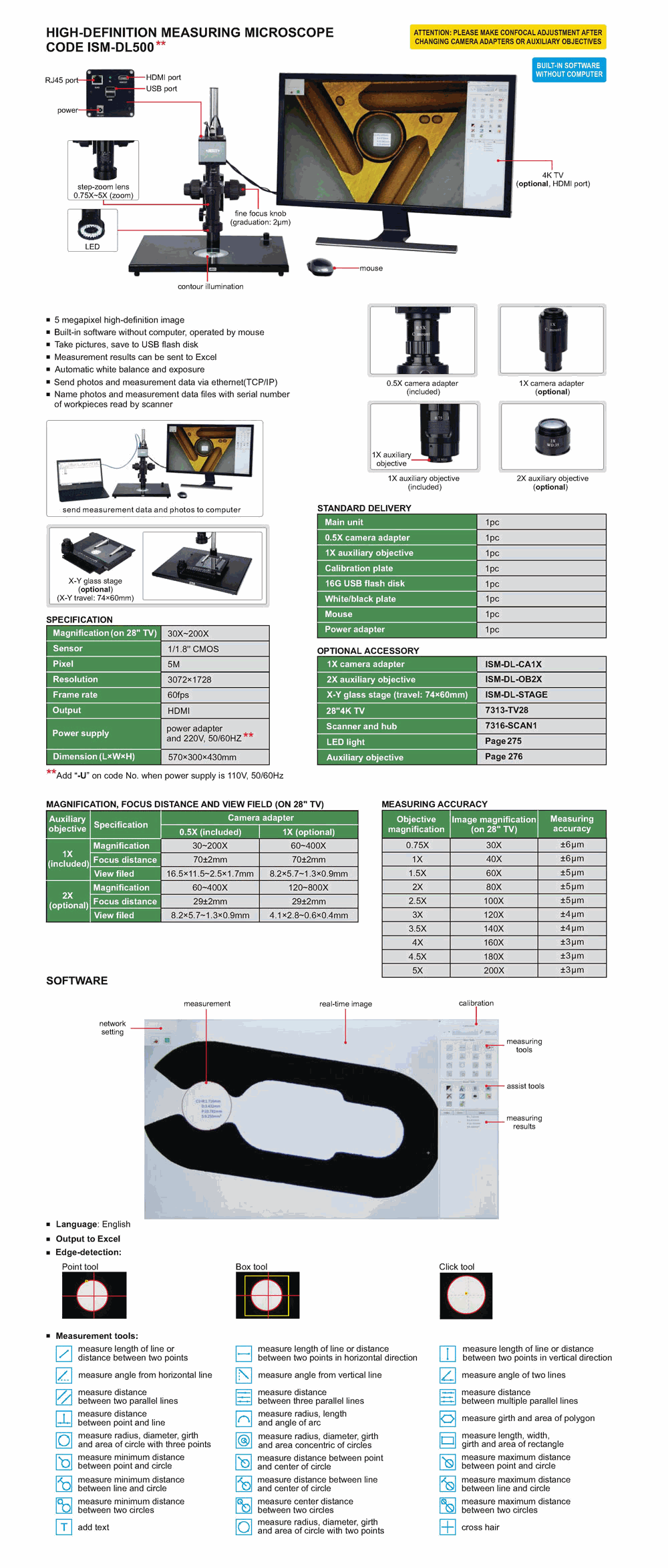

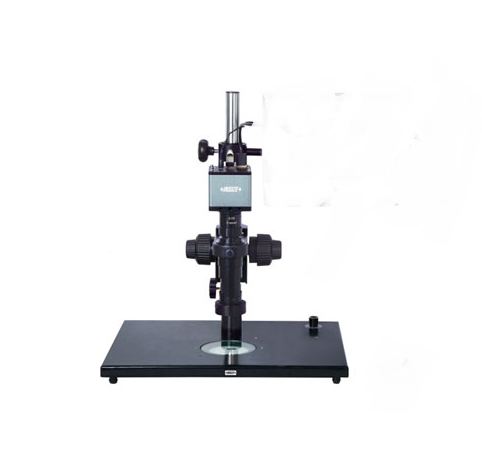

INSIZE ISM-DL500 High-Definition Measuring Microscope (30X~200X)

Magnification (on 28” TV): 30X~200X

Sensor: 1/1.8” CMOS

Pixel: 5M

Resolution: 3072x1728

Frame rate: 60fps

Output: HDMI

Power supply: power adapter and 220V, 50/60Hz

Dimension (LxWxH): 570x300x430mm

Measuring accuracy: ±3μm~±6μm

Objective magnification: 0.75X~5X

Image magnification (on28" TV): 30~200X

Standard delivery:

-Main unit: 1pc

-0.5X camera adapter: 1pc

-1X auxiliary objective: 1pc

-Calibration plate: 1pc

-16G USB flash disk: 1pc

-White/black plate: 1pc

-Mouse: 1pc

-Power adapter: 1pc

Optional accessory:

-1X camera adapter: ISM-DL-CA1X

-2X auxiliary objective: ISM-DL-OB2X

-X-Y glass stage (travel:74x60mm):ISM-DL-STAGE

-28”4K TV: 7313-TV28

-Scanner and hub: 7316-SCAN1

-LED light: Page 275

-Auxiliary objective: Page 276
