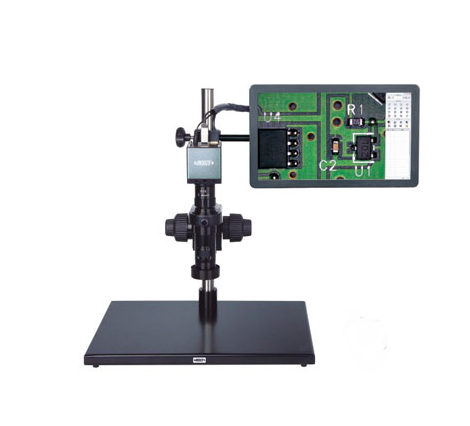

INSIZE ISM-DL301 Digital Measuring Microscope (15X~100X; 1920x1080; With contour illumination)

With contour illumination

Magnification: 15X~100X

Sensor: 1/2 “ CMOS

Pixel: 2M

Resolution: 1920x1080

Frame rate: 60fps

Output: HDMI

Power supply: power adapter and 220V, 50/60Hz

Objective magnification: 0.75X~5X

Image magnification: 15X~100X

Measuring accuracy: ±4μm~±8 μm

Dimension: 570x300x430

Weight: 6.5 kg

Standard delivery:

-Main unit: 1pc

-0.5X camera adapter: 1pc

-1X auxiliary objective: 1pc

-Calibration plate: 1pc

-16GB USB flash disk: 1pc

-White/black plate: 1pc

-Mouse: 1pc

-HDMI cable: 1pc

-Power adapter: 2pcs

Optional accessory:

-1X camera adapter: ISM-DL-CA1X

-2X auxiliary objective: ISM-DL-OB2X

-X-Y glass stage (travel: 74x60mm): ISM-DL-STAGE

-X-Y metal stage: ISM-DL-STAGE1

-LED light: page 275

-Auxiliary objective: page 258

Datasheet
