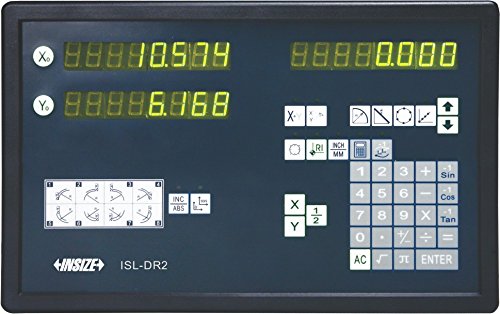

Application: two-axis
Resolution: 0.05µm, 0.1µm,0.2µm,0.5µm,1µm,2µm,5µm,10µm,20µm,50µm.
Functions: addition of 2-scale data, linearity error compensation, smoothing, RS232C interface unit,BCD code out, Zero setting, preset, resolution setting, counting direction setting, inch/mm conversion,ABS/INC conversion, expansion/contraction coefficient setting, "1/2" calculation,detecting RI, bolt-hole circle machining, ramp circle machining
Power supply: 110/220V, 50/60Hz
Dimension: 295x185x45mm
Weight: 1.45Kg
