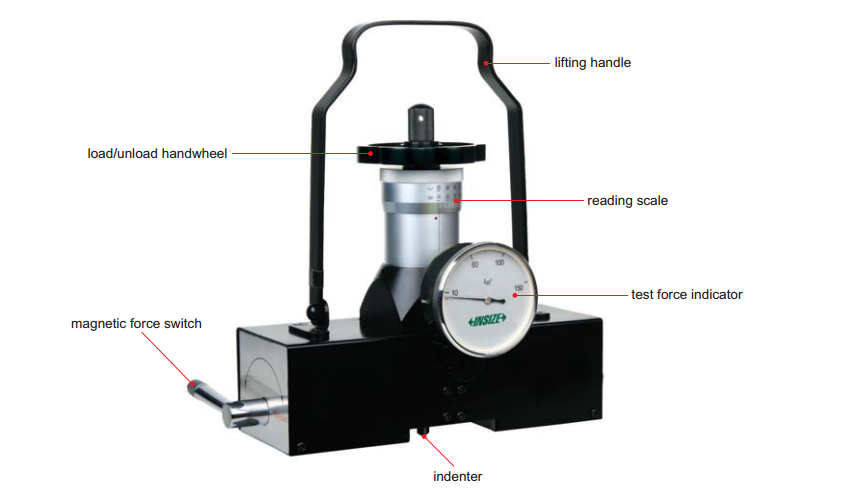

INSIZE ISHR-M111 Magnetic Rockwell Hardness Tester

SPECIFICATION:

Hardness scale: HRA, HRB, HRC, HRD, HRF, HRG

Preliminary test force: 10kg

Test force: 60kg, 100kg, 150kg

Load control: manual

Min. reading: 1HR

Flat workpiece requirement: length>180mm, width>60mm, thickness>5mm

Cylinder or tube workpiece requirement : length >180mm, diameter >Ø50mm, wall thickness >8mm

Dimension : 220×70×220mm

Weight : 4.7kg

STANDARD DELIVERY: Main unit , Diamond indenter, Ø1.5875mm carbide ball indenter, Hardness test block HRC60-70 , Hardness test block HRC20-30 , Hardness test block HRB85-95 , Flat anvil, Support, Magnifier with LED
