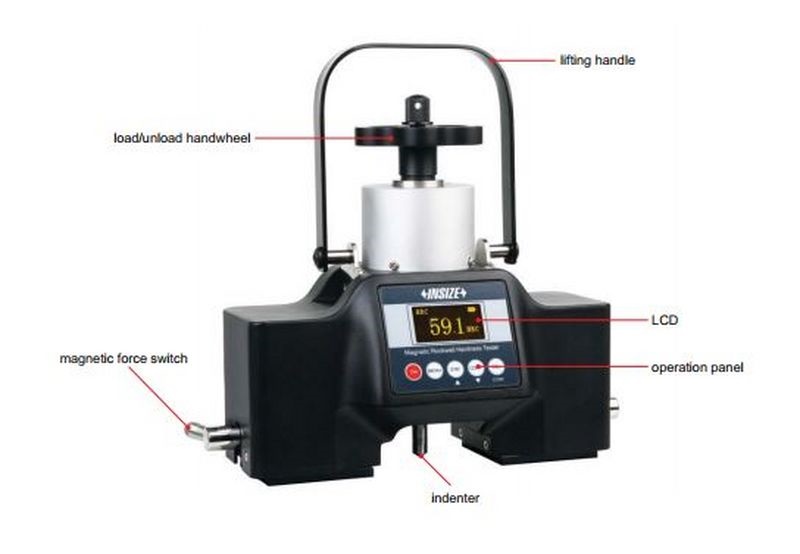

INSIZE ISHR-D121 DIGITAL MAGNETIC ROCKWELL HARDNESS TESTER

SPECIFICATION:

Hardness scale: HRA, HRB, HRC

Preliminary test force: 10kg

Test force: 60kg, 100kg, 150kg

Load control: manual

Min. reading: 0.1HR

Flat workpiece requirement: length>190mm, width>60mm, thickness>5mm

Cylinder or tube workpiece requirement : length>200mm, diameter>Ø50mm, wall thickness>8mm

Compliance to ISO 6508 , ASTM E18

Power supply: 3×AAA batteries

Dimension : 245×105×230mm

Weight : 5.3kg

STANDARD DELIVERY: Main unit , Flat anvil, Diamond indenter , Ø1.5875mm carbide ball indenter, Hardness test block HRB85-95 , Hardness test block HRC60-70 , Hardness test block HRC20-30

Datasheet
