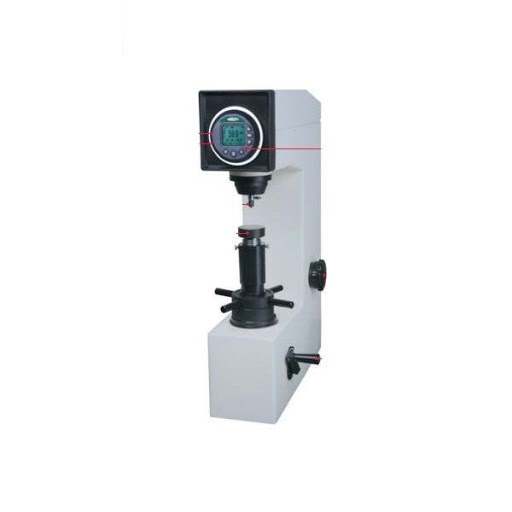

INSIZE ISH-RD200 Automatic Digital Rockwell Hardness Tester

Specification:

Hardness Scale - Standard Indenter: HRA, HRB, HRC, HRD, HRF,HRG

Hardness Scale - Optional Indenter: HRE, HRH, HRK

Preliminary Test Force: 98N

Test Force: 588N, 980N, 1471N

Stage Elevation: Manual

Load Control: Manual

Resolution: 0.1HR

Output: Wireless & USB

Memory: 1000

Max. Workpiece Height: 170mm

Max. Workpiece Depth: 165mm (From the Center of Indenter)

Power Supply of the isplay Unit: Built-in Rechargeable Battery

Dimension: 520x160x700mm

Weight: 60kg

Standard Delivery Includes: Main Unit, ø60mm Flat Anvil, ø150mm Flat Anvil, V-type Anvil, Diamond Indenter, ø1.5875mm Carbide Ball Indenter, Hardness Test Block HRB85-95, Hardness Test Block HRC60-70, Hardness Test Block HRC20-30, Anti-dust Cover, USB Cable, AC/DC Adapter.
