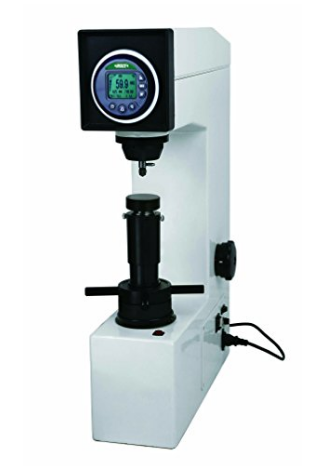

INSIZE ISH-MRD200 Automatic Digital Rockwell Hardness Tester

Specification:

Hardness Scale - Standard Indenter: HRA, HRB, HRC, HRD, HRF,HRG
Hardness Scale - Optional Indenter: HRE, HRH, HRK
Preliminary Test Force: 98N
Test Force: 588N, 980N, 1471N
Stage Elevation: Manual
Load Control: Automatic (Load/Dwell/Unload)
Load Dwell Time: 1 ~ 99 Seconds
Resolution: 0.1HR
Output: Wireless & USB
Memory: 1000
Max. Workpiece Height: 170mm
Max. Workpiece Depth: 165mm (From the Center of Indenter)
Power Supply of the isplay Unit: Built-in Rechargeable Battery
Dimension: 520x160x700mm
Weight: 60kg
Standard Delivery Includes: Main Unit, ø60mm Flat Anvil, ø150mm Flat Anvil, V-type Anvil, Diamond Indenter, ø1.5875mm Carbide Ball Indenter, Hardness Test Block HRB85-95, Hardness Test Block HRC60-70, Hardness Test Block HRC20-30, Anti-dust Cover, USB Cable, AC/DC Adapter.
