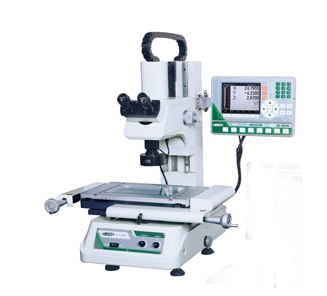

INSIZE ISD-VMM215 Toolmaker Microscope (200x100mm; 30X; 114X; Binocular)

Binocular

X/Y axis travel: 200x100mm

Z axis travel: 150mm

Metal stage size: 404x228mm

Glass stage size: 260x160mm

Resolution: of X/Y/Z axis: 0.5 μm

Accuracy of X/Y axis: ≤(2.5+L/100)μm (L is the measuring length in mm)

Repeatability: 2 μm

Camera: 1/3” color CCD, 0.3M pixel

Optical magnification: 30X

Image magnification: 114X (on 19” monitor)

Illumination: surface and contour with adjustable LED

Max. weight of workpiece: 25kg

Power supply: 100V~240V, 50/60Hz

Operating system: Windows 7/8/10

Drive method: manual

Dimension: 540x667x850mm

Weight: 110kg

Standard delivery:

-Main unit: 1pc

-Video card with dongle: 1pc

-Software disc: 1pc

-Calibration glass chart: 1pc

-Demo sample: 1pc

-Foot switch: 1pc

-3X objective: 1pc

Optional accessory:

-1X objective: ISD-VMM- LENS1X

-5X objective: ISD-VMM- LENS5X

-10X objective: ISD-VMM- LENS10X

-Printer: ISD-VMM- PRINTER

-Toolmaker microscopes (with computer): Binocular code ISD-VMM205A; ISD-VMM215A; ISD-VMM225A; ISD-VMM235A and Mononcular code ISD-VMM205DA; ISD-VMM215DA; ISD-VMM225DA; ISD-VMM235DA

Datasheet
