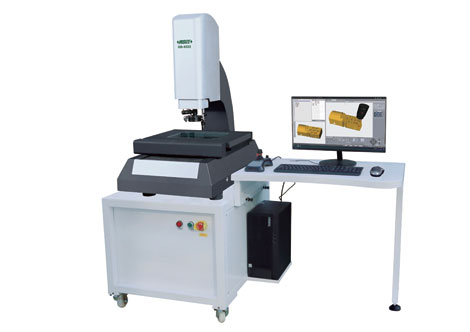

INSIZE ISD-U322 2D+3D composite CNC vision measuring systems (300x200x200mm, 0.7X~4.5X)

Measuring range (XxYxZ): 300x200x200mm

Stage size: 600x390mm

Glass stage size: 350x250mm

Resolution of X/Y/Z axis: 0.4µm

Accuracy (vision): ≤(2+L/200)µm (L is the measuring length in mm)

Accuracy (probe): ≤(3+L/200)µm (L is the measuring length in mm)

Repeatability: 1.5µm

Objective: 0.7X~4.5X (zoom)

Working distance: 55mm

View field (diagonal length): 1.3~7.9mm

Magnification: 36X-210X (on 21.5" monitor)

Camera: 1/2" color CCD, 2M pixel

Illumination

contour: coaxial light, programmable segmented ring light

surface: adjustable LED light

Max. height of workpiece: 195mm

Max. weight of workpiece: 20kg

Operation system: Windows 10/11

Drive method: automatic

Power supply: 220V, 50/60Hz

Dimension (LxWxH): 1400x900x1780mm

Weight: 440kg

■ Motorized zoom objective

■ Can import 3D drawings

■ Vision mearsurement and probe mearsurement can be used in the same program

■ Granite platform, column and stage, more stable

■ Double close-loop motion control, with precise positioning performance in

high-speed movement

■ Panasonic servo control motor

■ 40 independent surface light source, 200-step adjustment

■ Servo motors for X, Y, Z axis
