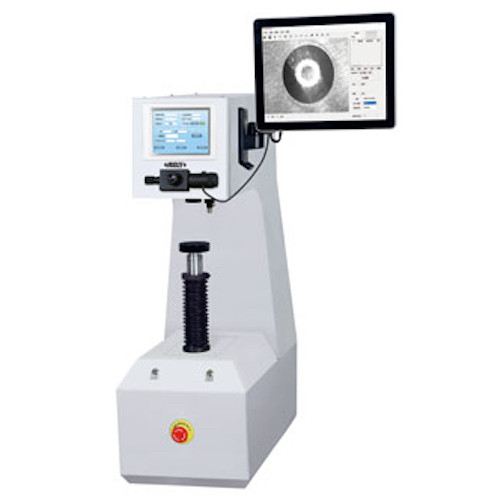

INSIZE HDT-XB500 Automatic Digital Brinell Hardness Tester (8-650HBW)
ManufacturerINSIZE(View more products from this manufacturer)
ModelHDT-XB500
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Turret rotation: automatic
Stage elevation: automatic
Range: 8-650HBW
Test force: 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf
Measuring accuracy
HBW ≤ 125: ±3%
125 < 225 < HBW: ±2.5%
HBW>225: ±2%
Hardness measuring resolution: 0.1HBW
Measuring microscope
Eyepiece20X
Resolution: 0.1μm
Load control: automatic (load/dwell/unload)
Load dwell time: 0-99 second
Max. workpiece height: 320mm
Max. testing width: 250mm(from the center of indenter to the wall of main body)
Power supply: 220V, 50/60HZ
Dimension: 700×340×970mm
Weight: 160kg
