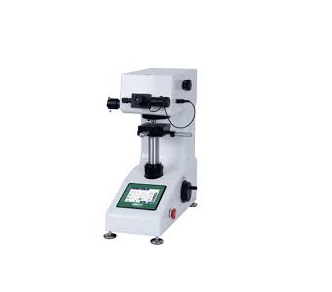

INSIZE HDT-MVH1100 Digital Micro-Vickers Hardness Tester (5-3000HV)

Test force: 0.098N (10gf), 0.245N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.9N (500gf), 9.8N (1kgf)

Vickers scales: HV0.01, HV0.025, HV0.05, HVO.1, HVO.2, HV0.3, HV0.5, HV1

Converted scales: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Range: 5-3000HV

Length measurement resolution: 0.025μm

Objective/indenter switch: motor driven turret

Stage lifting: manual

Load control: automatic (load/dwell/unload)

Load dwell time: 1-60 second

Objective: 10X, 40X

Eyepiece: 10X

Total magnification: 10X (for measurement or observation); 400X (for measurement)

Max. workpiece height: 90mm

Max. testing width: 95mm (form the center of indenter to the wall of main body)

X-Y stage: dimensions: 100x100mm, travel range: 25×25mm

Data output: built-in printer220V, 50/60Hz

Power supply: 220V, 50/60Hz

Dimension: 510×290×570mm

Weight: 40kg
