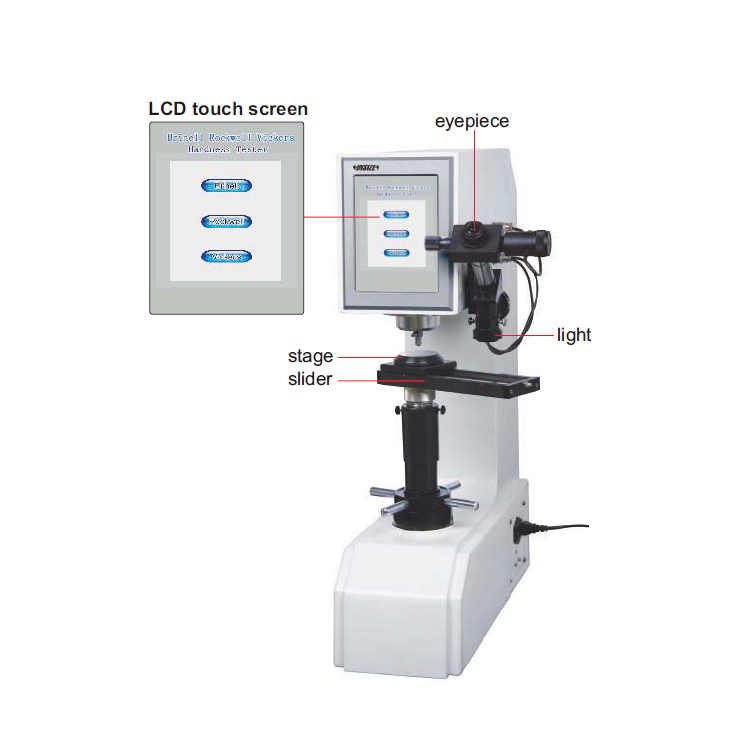

INSIZE HDT-BRV130 Digital Brinell/Rockwell/Vickers Hardness Tester

Brinell test load: 49N(5kgf), 98N(10kgf), 153N(15.625kgf), 294N(30kgf), 306N(31.25kgf), 613(62.5kgf), 980N(100kgf), 1226N(125kgf), 1839N(187.5kgf)

Brinell scales: HBW1/5, HBW2.5/62.5, HBW1/10, HBW2.5/15.625, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW10/100, HBW5/125, HBW2.5/187.5

Brinell resolution: 0.1HBW

Rockwell test load: 90N(10kgf) preload, 588N(60kgf), 980N(100kgf), 1471N(150kgf) total load

Rockwell scales: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Rockwell resolution: 0.1HR

Vickers test load: 49N(5kgf), 98N(10kgf), 196N(20kgf), 294N(30kgf), 392N(40kgf), 490N(50kgf), 588N(60kgf), 784N(80kgf), 980N(100kgf), 1176N(1200kgf)

Vickers scales: HV5, HV10, HV20, HV30, HV40, HV50, HV60, HV80, HV100, HV120

Vickers resolution: 0.1HV

Objective: 2.5X / 5X

Magnification of microscope: Brinell: 37.5X, Vickers: 75X

Hardness test range: Brinell: 8 - 650HBW

Rockwell: 20 - 100HR

Vickers: 8 - 2900HV

Max. workpiece height: Rockwell: 220mm

Brinell and Vickers: 150mm

Max. testing width: 200mm (from the center of the indenter to the wall of main body)

Data output: USB flash disk

Power supply: 220V, 50/60Hz

Dimension: 560 x 350 x 800mm

Weight: 70kg
