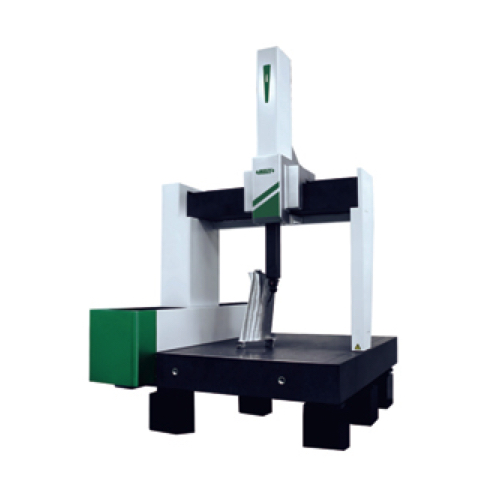

INSIZE CMM-PM122510B Coordinate Measuring Machines (Large Range) (1200×2500×1000mm, ±(2.5+L/300)µm/ 2.5µm)

Range (X×Y×Z): 1200×2500×1000mm

Probe system:

Head: PH10M

Body: SP25M

Accuracy:

MPEE: ±(2.5+ L/300)µm

MPEP: 2.5µm

Max. load: 2000kg

Overall dimension: 2085×3880×3470mm

Weight: 5500kg

Datasheet

STANDARD DELIVERY:

Main unit: 1 pc

Probe system:

Probe head: 1 pc

Probe body: 1 pc

Styli: 1 set

Control system: 1 set

Calibration sphere: 1 pc

Universal sphere seat: 1 pc

Computer: 1 pc

Printer: 1 pc

Software: 1 set

Table and chair: 1 set
