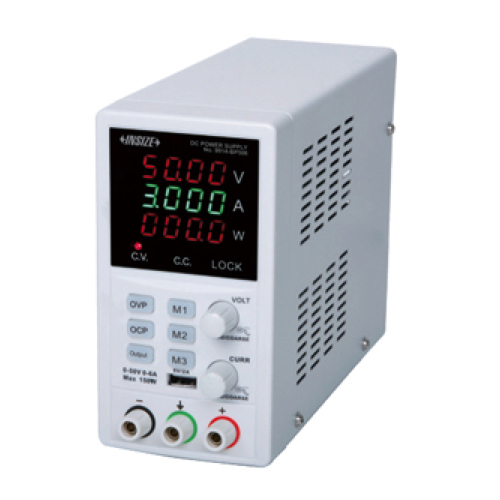

INSIZE 9914-BP506 DC Power Supply (0~50V, 0~6A, 150W)

Rate output voltage: 0~50V

Rate output current: 0~6A

Maximum output power: 150W

Voltage

Setting resolution: ≤0.5% + 50mV

Setting accuracy: ≤0.5% + 50mV

Readback resolution: 10mV

Readback accuracy: ≤0.5% + 50mV

Load regulation: ≤0.05% + 5mV

Line regulation: ≤0.1% + 3mV

Ripple: ≤5mVrms

Current

Setting resolution: 1mA

Setting accuracy: ≤0.5% + 5mA

Readback resolution: 1mA

Readback accuracy: ≤0.5% + 5mA

Load regulation: ≤0.1% + 3mA

Line regulation: ≤0.1% + 3mA

Ripple: ≤20mArms

OVP: 0~55V

OCP: 0~6.5A

Cool system: Fan cool

Power supply: 110V/220V ±10%, 50Hz/60Hz

Dimension: 200x80x155mm

Weight: 1.23kg

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

Test lead: 2 pcs
