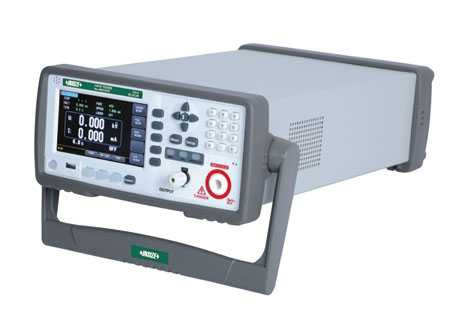

INSIZE 9453-ST01 AC/DC withstanding voltage insulation tester (AC: 5kV; DC: 6kV)

Specification

Withstand voltage test:

Output voltage:

Range:AC: 5kV; DC: 6kV

Resolution (d):0.001kV

Accuracy:±(2%+5d)

Test current:

Range:AC: 10mA; DC: 5mA

Resolution (d):AC: 0.001mA~0.01mA; DC: 0.1µA-0.01mA

Accuracy:±(2%+5d)

Insulation resistance test:

Output voltage:

Range:1kV

Resolution (d):0.001kV

Accuracy:±(1%+2d)

Test resistance:

Range:10GΩ

Resolution (d):0.001ΜΩ~0.01GΩ

Accuracy:

output voltage≥500V, test resistance 1ΜΩ-1GΩ: ±(5%+5d)

output voltage≥500V, test resistance 1GΩ-10GΩ: ±(10%+5d)

output voltage<500V, test resistance 0.1ΜΩ-1GΩ: ±(10%+50)

Discharge function:discharge after testing

Arc detection:1-9 level (AC/DC), factory default is 5

Time:

voltage rising time: 0.1s~999.9s;

voltage falling time: 0.1s~999.9s;

voltage testing time: 0.1s-999.9s

Interface:HANDLER interface, RS232C interface, USB interface

Operation environment:temperature: 10°C~40°C; relative humidity: ≤70%

Power supply:AC 110V/220V, 50Hz/60Hz

Dimension (LxWxH):450x270x130mm

Weight:9.2kg

Standard Delivery:

Main unit:1pc

High voltage test clip:2pcs

High voltage test rod:1pc

RS232 communication cable:1pc

■ 5-inch LCD touch screen display

■ Arc detection function

■ Electric shock protection function

■ 10 test files can be stored, each file can be edited with

16 test steps.

■ Standard communication interface to meet automation test requirements.

■ Applications: home appliance, transformer, electrical device, component.
