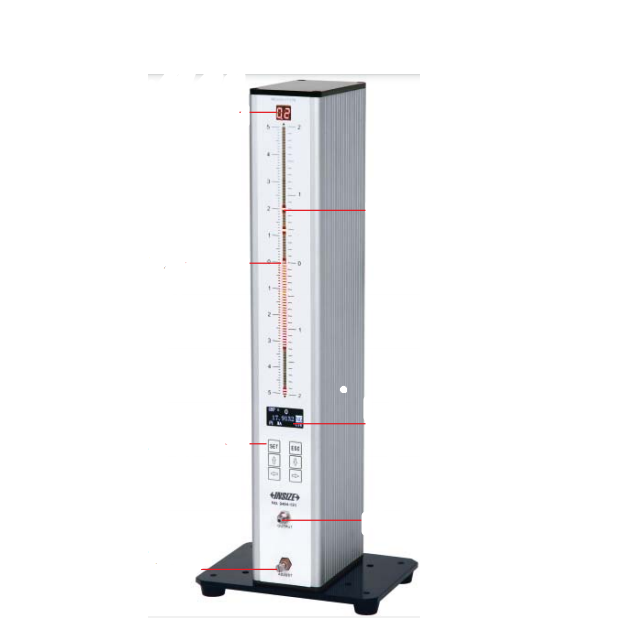

INSIZE 9404-121 Air Gage Display (0.4~0.8Mpa)

LED quantity: 101pcs

LED column color: red, orange, green

LED column height: 254mm

Indication range: ±5 μm; Resolution: 0.1 μm; Accuracy: 0.2 μm

Indication range: ±10 μm; Resolution: 0.2 μm; Accuracy: 0.4 μm

Indication range: ±25 μm; Resolution: 0.5 μm; Accuracy: 1 μm

Indication range: ±50 μm; Resolution: 1 μm; Accuracy: 2 μm

Unit: mm, μm

Measuring mode: dynamic measurement, Max, Min, Max-Min, (Max+Min)/2, (Max-Min)/2

Air supply: dry and clean, 0.4~0.8Mpa

Data interface: RS 232

Operation temperature: 0~45°C

Power supply: 220V, 50/60Hz

Dimension(LxWxH): 190x145x495mm

Weight: 4.25kg

Standard delivery:

-Main unit: 1pc

-Power cable: 1pc

Optional accsessory:

-Air filter: 1pc

-Pressure regulating valve: 1pc

-RS232 cable: 1pc

-Footswitch: 1pc
