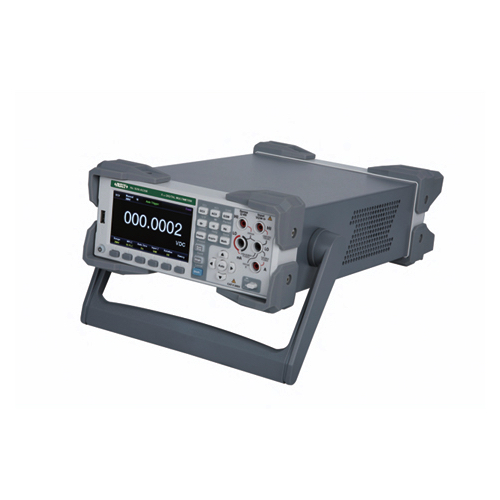

INSIZE 9258-KC550 Digital Multimeter (1000VDC, 750VAC, 10AAC/DC)

DC Voltage:

Range: 200mV/2V/20V/200V/1000V

Basic Accuracy (reading%+range%): ±(0.0035 + 0.0006)

AC Voltage:

Range: 200mV/2V/20V/200V/750V

Basic Accuracy (reading%+range%): ±(0.06 + 0.03)

DC Current:

Range: 2μΑ/20μΑ/200μA/2mA/20mA/200mA/2A/10A

Basic Accuracy (reading%+range%): ±(0.05 + 0.002)

AC Current:

Range: 200μA/2mA/20mA/200mA/2A/10A

Basic Accuracy (reading%+range%): ±(0.1 + 0.04)

Resistance:

Range: 200/2000/2ΚΩ/20ΚΩ/200ΚΩ/2ΜΩ/10ΜΩ/100MΩ/1GΩ

Basic Accuracy (reading%+range%): ±(0.01 + 0.001)

Capacitance:

Range: 2nF/20nF/200nF/2µF/20µF/200μF/2mF/20mF/100mF

Basic Accuracy (reading%+range%): ±(1 + 0.1)

Frequency:

Range: 3Hz~1MHz

Basic Accuracy (reading%+range%): ±(0.007)

Temperature: Supports thermocouple and RTD testing

Continuity Check: Adjustable from 00~20000, default is 30Ω

Diode Test: 0V~4V

Frequency Response: 300kHz

Mathematical Operation: Maximum, minimum, average, standard deviation, relative, dBm, dB

Trigger: Automatic trigger, single trigger, external trigger

Display: Digital, dual-window, histogram, tendency chart, bar chart

Interface:

Communication Interface: USB/LAN/RS232; Storage Interface: U disk

Power Supply:

100V ~ 120V, 45 ~ 440Hz

200V ~ 240V, 45 ~ 66Hz

Size (W×H×D): 378×256×113mm

Weight: 3.4kg

Datasheet

STANDARD DELIVERY:

Main Unit: 1 pc

Test Lead: 2 pcs

Test Clip: 2 pcs

RS232 Cable: 1 pc

USB Cable: 1 pc

K-Type Thermocouple: 1 pc
