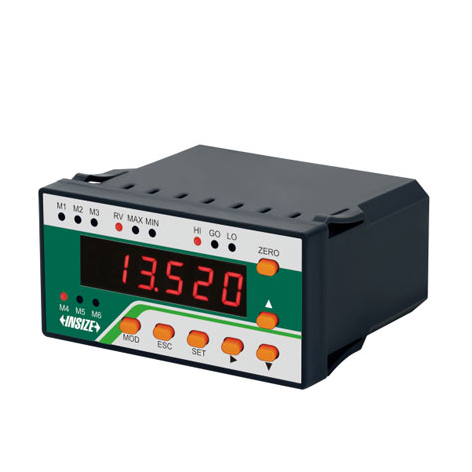

INSIZE 7106-1A Display Unit

Can be connected with 7107-11 or 7107-12 linear gage, can also be connected with digital indicator (data cable 7309-C01M is needed)

Display: 6 digits

Quantity of linear gage or digital indicator to be connected: 1pc

Tolerance: set tolerance and make judgment with alarm and lights (out of upper tolerance, within tolerance, out of lower tolerance)

Output control: output the tolerance judgment (out of upper tolerance, within tolerance, out of lower tolerance) to control outside devices

Outside control: control the display units from outside (set zero, hold reading and collect data)

Data output: connect to computer software and serial communication

Power supply:DC 9-24V
