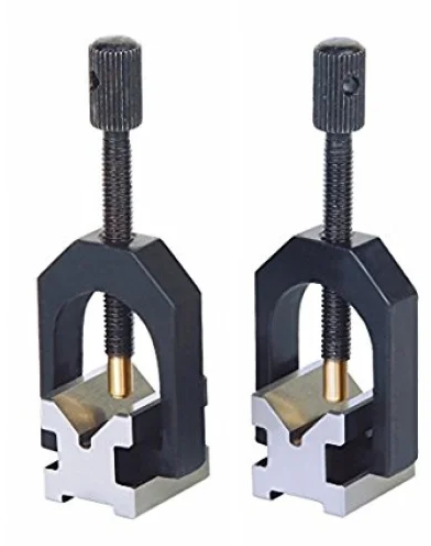

INSIZE 6896-14 V-BLOCK SET
ManufacturerINSIZE(View more products from this manufacturer)
Model6896-14
USD 830.11
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Size: 140x70x140mm
Range of shafts (Ød): 9~140mm
Parallelism of V grooves to top and bottom sides: 5µm
Squareness of V grooves to front and back sides: 5µm
Height difference of a matched pair: 5µm
Two V-blocks per set
Hardened to HRC60±2
V groove on the top for large shafts
V groove on the bottom for small shafts (except 6896-10)
Hold cylindrical workpieces for inspection and machining
