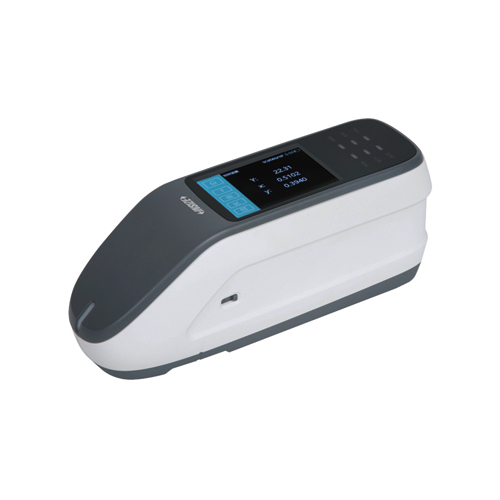

INSIZE 5707-DS78 Portable Spectrophotometer (360nm-780nm, 0~200%)

Optical Geometry: D/8 (diffused illumination/8° direction reception), SCI+SCE (specular component included + specular component excluded)

Integrating Sphere Size: Ø40mm

Lighting Source: Full-band balanced LED + xenon lamp

Sensor: Dual-row high-precision CMOS image sensor

Calibration Mode: BCRA certified black and white board energy calibration, green board wavelength accuracy calibration

Spectrophotometric Mode: Grating

Display Accuracy: 0.01

Light Source Lifetime: 10 million times measurements

Wavelength Range: 360nm-780nm

Wavelength Interval: 10nm

Measurement Range: 0~200%

Reflectance Resolution: 0.01%

Measuring Aperture: Ø11mm, Ø10mm, Ø6mm, Ø3mm

Repeatability: 0.01 ΔE*ab (after instrument calibration, the white board was measured 30 times at 5s intervals with the MAV calibre)

Inter-Instrument Error: 0.2 ΔE*ab (BCRA series II 12 colour plates MAV calibre measurement average)

Observer Angle: 2°/10°

Colorimetric Index: Spectral reflectivity, CIE-Lab, CIE-LCH, HunterLab, CIE-Luv, XYZ, Yxy, RGB (AEab, ΔΕcmc, ΔΕ94, ΔΕ00), Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM), Strength, Fastness, Tint (ASTM E313-00), CMYK (A, T, E, M), Milm, Munsell, Opacity, Color strength

Illumination: A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2

Measuring Time: 1s

Data Storage: Instrument: 10000 pcs, app: mass storage

Locating Method: Color camera preview

Display Screen: 3.5-inch full-colour screen, capacitive touch screen

Interface: USB, Bluetooth

Calibration: Automatic intelligent calibration

Software Support: Android, iOS, Windows

Power: Li-ion battery, 7.2V, 3000mAh, fully charged continuous test 8000 times

Dimension: 233x77x93mm

Weight: 600g

Datasheet
