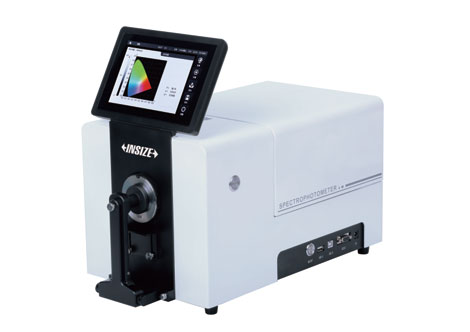

INSIZE 5706-DS01 Spectrophotometer (Ø152mm; 360nm~780nm)

Specification:

Optical geometry:reflect: D/8 (diffused illumination, 8°direction reception), transmission: D/0 (diffused illumination, vertical reception) SCI (specular reflective light included), SCE (specular reflective light not included)

Integrating sphere diameter:Ø152mm

Light source:pulsed xenon lamp and LED

Spectrophotometric mode:concave grating

Sensor:double array CMOS image sensor

Wavelength range:360nm~780nm

Wavelength interval:10nm

Reflectance measuring range:0-200%

Reflectance resolution:0.01%

Transmission measurement:width and height unlimited, thickness≤50mm

Measuring aperture:reflect: XLAV Ø25.4mm/Ø30mm, LAV Ø15mm/18mm, MAV 08mm/011mm, SAV Ø3mm/06mm, transmision: Ø17mm/25mm

Color space:Lab, L"C"h, Hunter Lab, Yxy, XYZ

Color difference formula:ΔE*ab, ΔΕ*CH, ΔΕ*υν, ΔΕ*cmc, ΔE94, ΔE*00, ΔEab(Hunter), 555 color classification

Colorimetric index:WI(ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube, Berger Stensby), YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313-00), metamerism index Milm, staining fastness, color fastness, ISO luminance, R457, A density, Tdensity, Edensity, M density, APHA/Hazen/Pt-Co, Gardner, Saybolt, Astm color, haze, total transmittance, coverage, power, strength

Observer angle:2°/10°

Illuminant:A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, DLF, NBF, TL83, TL84

Measuring time:SCI or SCE <2 seconds, SCI and SCE simultaneous measuring <4 seconds ΔE*ab≤0.015

Repeatability:reflect/transmittance≤0.1%

Inter-instrument error:XLAV ΔE*ab≤0.25 (based on average of 12 swatches of BCRA series at 23°C)

Data port:RS232, USB, USB-B

Power supply:power adapter (24V/2.5A)

Dimension:465×240×260mm

Weight:10.8kg

Standard Delivery:

Main unit: 1 pc

Black cavity: 1 pc

White plate:1 pc

Green plate: 1 pc

Measuring aperture: 4 pcs

Cuvette: 1 pc

USB flash disk: 1 pc

Data cable: 2 pcs

Damping handle: 1 pc

Support platform: 1 pc

Transmission fixture: 1 pc

Power adapter:1 pc

■ Highly stable UV source for stable fluorescence measurements

■ Grating spectroscopy, 7" IPS touch screen

■ Two types of light sources: pulsed lamp and LED, can measure SCI and SCE simultaneously and quickly

■ 24 standard light sources, more than 40 measurement indicators

■ Temperature and humidity compensation function
