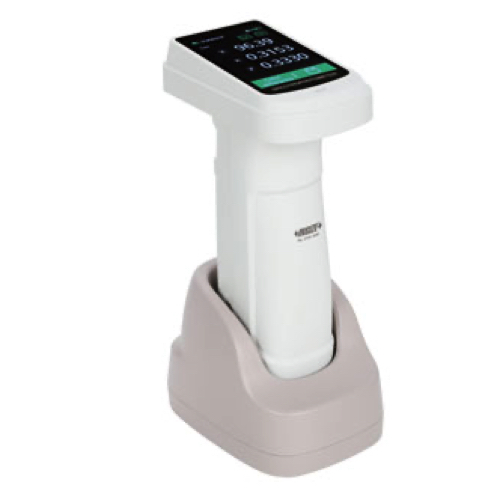

INSIZE 5701-D45 Spectrophotometers (400~700nm, 0~200%, 45/0)

Optical geometry: 45/0 (45° illumination/vertical reception)

Integrating sphere size: ring lighting strips

Light source: LED (full band balanced LED)

Spectrophotometric mode: grating

Sensor: dual optical path high precise CMOS array sensor

Wavelength range: 400~700nm

Wavelength interval: 10nm

Reflectance measurement range: 0~200%

Reflectance resolution: 0.01%

Display resolution: 0.01

Illumination area/aperture: MAV: Ø11mm; SAV: Ø6mm, Ø3mm; MINI: 1×3mm

Color space: CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB

Color difference formula: ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00, ΔE*ch, ΔE*uv, ΔEab

Measuring time: about 1.5s

Repeatability:

Spectral reflectance: within 0.08% of standard deviation

Colorimetric values: ΔΕ*ab ≤ 0.025 (after whiteboard correction, measuring the whiteboard 30 times at 5s interval)

Inter-instrument error: ΔΕ*ab ≤ 0.25 (BCRA series II, average value of 12 color plates)

Data port: USB, Bluetooth

Light source lifetime: 10 years, more than 1 million times measurements

Battery: 3.7V/3000mAh, rechargeable, 8000 times continuous tests

Dimension: 95×129×231mm

Weight: 750g

STANDARD DELIVERY:

Main unit: 1 pc

White calibration cavity: 1 pc

Measuring aperture: 9 pcs

USB cable: 1 pc

USB disk: 1 pc

AC/DC adapter: 1 pc

Black light trap: 1 pc
