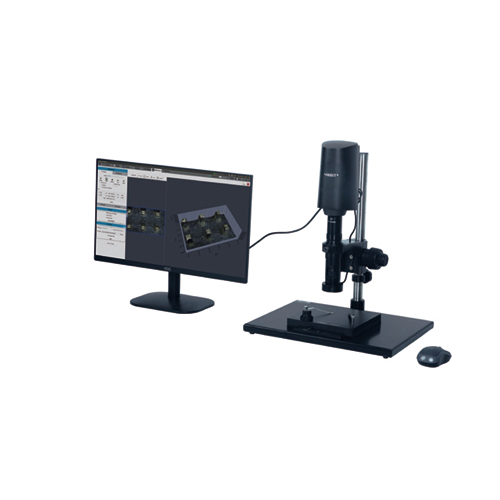

INSIZE 5324-K210 Large Depth Of Field 3D Measuring Microscope (100~750X)
ManufacturerINSIZE(View more products from this manufacturer)
Model5324-K210
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Sensor: 1/2" CMOS
Pixel: 2M
Resolution: 1920×1080
Magnification: 100~750X
Z-axis measurement range: 2mm
View field: 0.6×0.32~4.5×2.5mm
Working distance: 30~40mm
Frame rate: 60fps
Plane measuring accuracy: ±8μm
Output: HDMI/LAN
Power supply: Power adapter
Dimension (L×W×H): 570×300×430mm
Weight: 10kg
STANDARD DELIVERY:
Main unit: 1 pc
X-Y metal stage: 1 pc
Mouse: 1 pc
Keyboard: 1 pc
Power adapter: 3 pcs
Glass calibration rule: 1 pc
Calibration block: 1 set
16G USB flash disk: 1 pc
