INSIZE 3350-100 High Precision Digital Snap Gage (75-100mm/3-4”; 2µm; no built-in wireless)

Range: 75-100mm/3-4”

Accuracy: 2µm

Repeatability: 1µm

Measuring faces flatness: 0.5µm

Measuring faces parallelism: 1µm

A: 113mm

B: 57mm

Built-in wireless: no

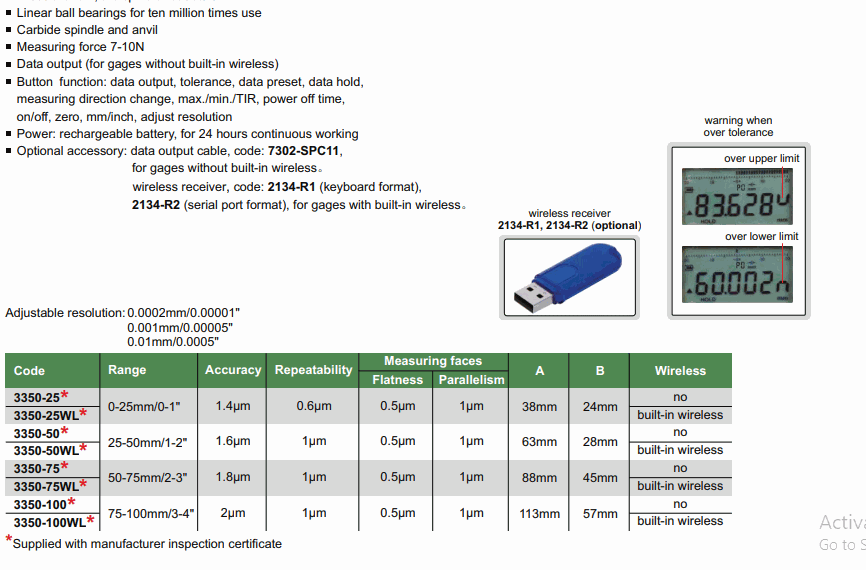

Adjustable resolution:

- 0.0002mm/0.00001”

- 0.001mm/0.00005”

- 0.01mm/0.0005”

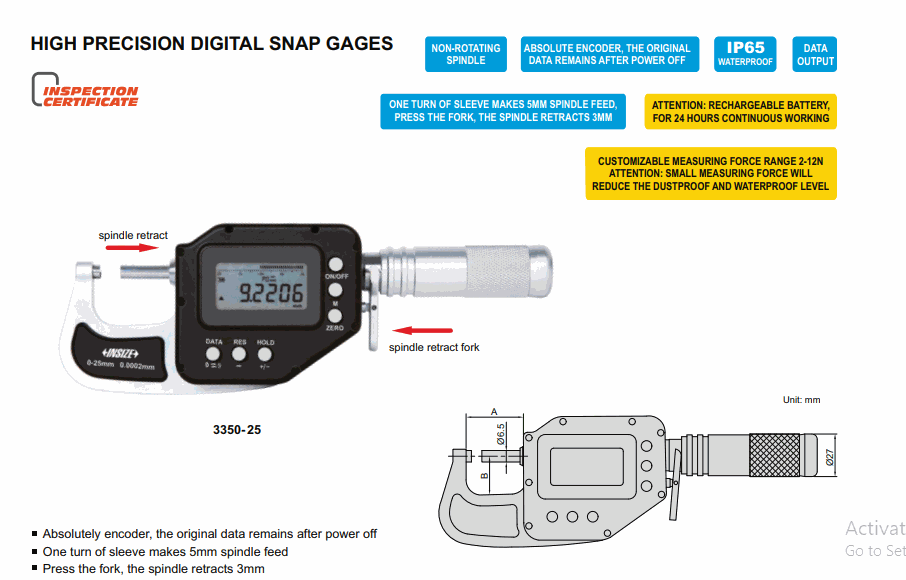

Absolutely encoder, the original data remains after power off

One turn of sleeve makes 5mm spindle feed

Press the fork, the spindle retracts 3mm

Linear ball bearings for ten million times use

Carbide spindle and anvil

Measuring force: 7-10N

Data output

Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TIR, power off time, on/off, zero, mm/inch, adjust resolution

Power: rechargeable battery, for 24 hours continuous working

Optional accessory:

- Data output cable (code 7302-SPC11)
