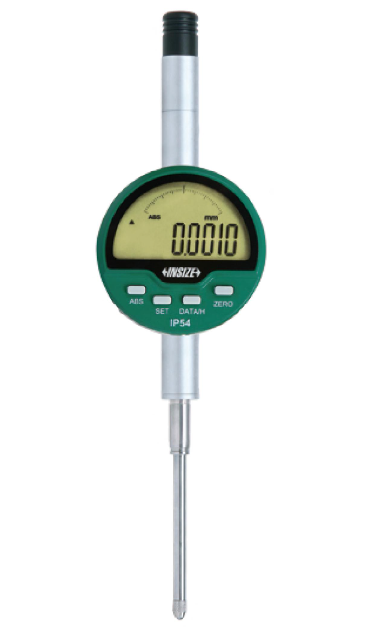

Range: 0-50.8mm/0-2"
Accuracy: 4µm
Hysteresis: 2µm
Maximum measuring force: 2.3N
Cap: can lift
Remark: flat back
■IP54 dust/waterproof (when cap is lifted, no dust/waterproof)
■Absolute encoder, the original data remains after power off
■Automatic power off
■Reading in digital and analog
■ Display can be rotated by 270°
■Button function: on/off, zero setting, data preset, tolerance Go and No-Go display, data hold, mm/inch, measuring direction change, max./min./TIR, absolute/incremental measurement, data output
■Data output with USB cable (keyboard format), cable length 1.8 meters, single and continuous transmission (the fastest data output is 40 pcs per 10s)
■ Power: rechargeable battery, for 30 hours continuous working
