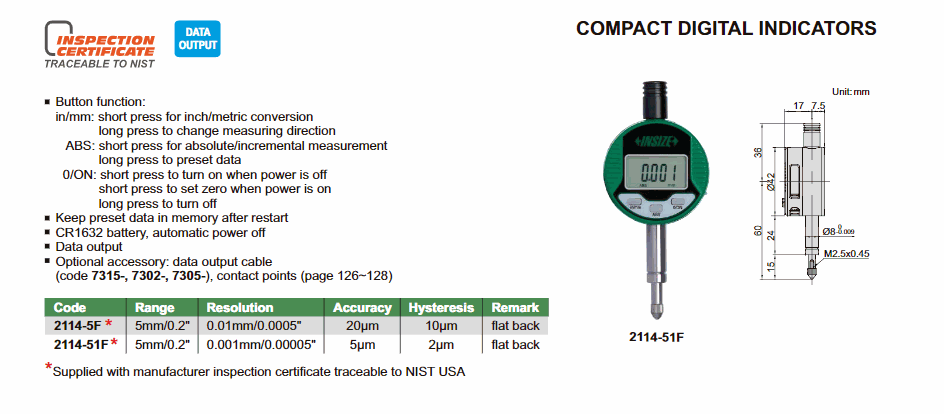

INSIZE 2114-51F Compact Digital Indicator (5mm/0.2"; 0.01mm/0.0005")

Range: 5mm/0.2"

Resolution: 0.01mm/0.0005"

Accuracy: 20µm

Hysteresis: 10µm

Remark: flat back

Button function:

- inch/mm: short press for inch/metric conversion

long press to chnage measuring direction

- ABS: short press for absolute/incremental measurement

long press to preset data

- 0/on: short press to turn on when power is off

short press to set zero when power is on

long press to turn off

Keep preset data in memory after restart

CR1632 battery, automatic power off

Data output

Optional accessory:

- Data output cable (code 7315-, 7302-, 7305-)

- Contact points
