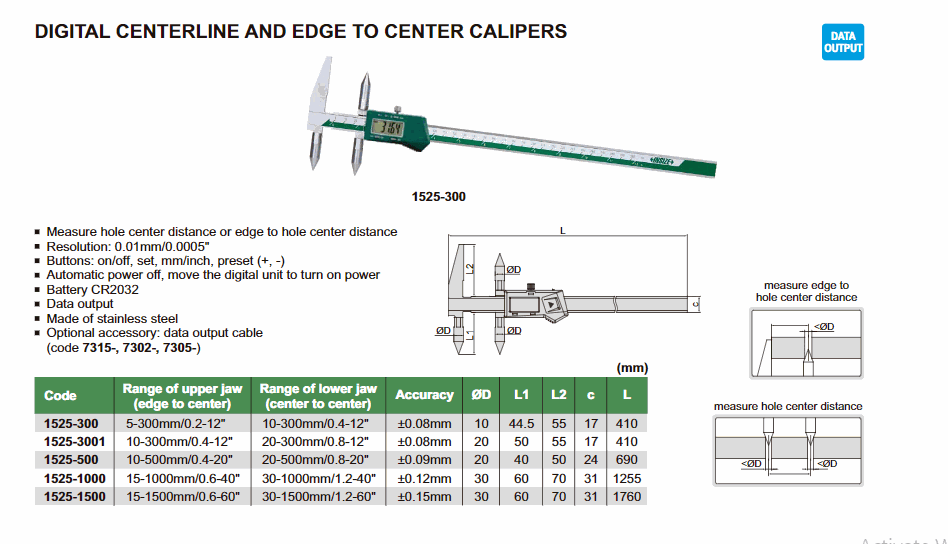

INSIZE 1525-1500 Digital Centerline/Edge To Center Caliper (15~1500mm; 30~1500mm)

Range of upper jaw (edge to center): 15~1500mm/0.6~60"

Range of lower jaw (center to center): 30~1500mm/1.2~60"

Accuracy: ±0.15mm

Resolution: 0.01mm/0.0005"

Length: 1760mm

Upper jaw height: 70mm

Lower jaw height: 60mm

Buttons: on/off, mm/inch, set, preset (+,-)

Automatic power off, move the digital unit to turn on power

Battery CR2032

Data output

Made of stainless steel

Optional accessory:

- Data output cable (code 7315-, 7302-, 7305-)
